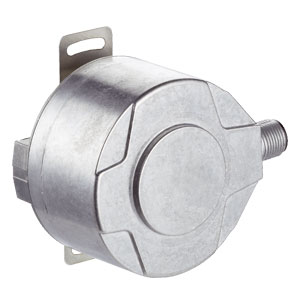

DFS60B-BDPC10000: 1036775 - Sick Incremental Encoder DFS60B
Technical Specifications of Sick Incremental Encoder DFS60B DFS60B-BDPC10000 1036775:
| Spec | Value |
|---|---|
| Pulses per revolution | 10,000 |
| Communication interface | Incremental, TTL / HTL |
| Connection type | Male connector, M12, 8-pin, radial |
| Number of signal channels | 6-channel |
Sick Incremental Encoder DFS60B DFS60B-BDPC10000, 1036775 Technical Specifications:
| Specification | Value |
|---|---|
| Pulses per revolution | 10,000 |
| Measuring step | 90°, electric/pulses per revolution |
| Measuring step deviation | ± 0.01° |
| Error limits | ± 0.05° |
| Duty cycle | - |
| Communication interface | Incremental, TTL / HTL |
| Number of signal channels | 6-channel |
| Output frequency | ≤ 600 kHz |
| Load current | ≤ 30 mA |
| Power consumption | ≤ 0.7 W (without load) |
| Connection type | Male connector, M12, 8-pin, radial |
| Supply voltage | 4.5 ... 32 V |
| Mechanical design | Blind hollow shaft |
| Shaft diameter | 10 mm |
| Shaft length | - |
| Shaft material | Stainless steel |
| Flange material | Aluminum die-cast |
| Housing material | Aluminum die-cast |
| Material, cable | PVC |
| Operating torque | 0.6 Ncm (+20 °C) |
| Enclosure rating | IP67, housing side |
| Operating temperature range | –40 °C ... +100 °C |
| Storage temperature range | –40 °C ... +100 °C (without package) |
| Weight | 0.2 kg |
Give Us a Call for Sick Incremental Encoder DFS60B DFS60B-BDPC10000 part no: 1036775 at the lowest pricing. In-depth Technical Analysis of DFS60B-BDPC10000, 1036775 feature a 10000 pulses per revolution (PPR) resolution with 90° electric pulses and operates with Incremental, TTL / HTL output signals. This 6-channel encoder can handle frequencies up to ≤ 600 kHz and operates on a 4.5 ... 32 V power supply. The robust construction includes a Blind hollow shaft with a 10 mm diameter, housed in a durable aluminum body with a stainless steel shaft, ensuring longevity and resistance to harsh environments. The encoder is equipped with an IP67, housing side-rated seal, making it suitable for demanding industrial conditions, with operating temperatures ranging from –40 °C ... +100 °C. The compact design includes an Male connector, M12, 8-pin, radial for easy connectivity. Weighing just 0.2 kg, this encoder is an excellent choice for applications requiring high precision and durability. Elevate Your Project with a Quote for your requirement of Sick Incremental Encoder DFS60B. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
