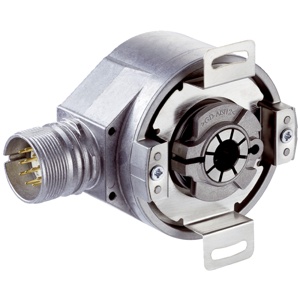

Sick DFS60B-BDPA10000 - Incremental Encoder
The Sick DFS60B-BDPA10000 incremental encoder provides 10,000 pulses per revolution with TTL/HTL output and a 10 mm blind hollow shaft. It features a 6-channel signal system, supports 4.5–32 V supply, reaches 600 kHz output frequency, and works reliably from –40 °C to +100 °C. This encoder belongs to the Sick automation range, fits within the Sick Incremental Encoder category, and aligns with the series used across industrial systems.
| Brand | Sick |
| Product Type | Incremental Encoder |
| Model Number | DFS60B-BDPA10000 |
Sick DFS60B-BDPA10000 Incremental Encoder - Technical Specifications
| Specification | Value |
|---|---|
| Pulses per revolution | 10,000 1) |
| Measuring step | 90°, electric/pulses per revolution |
| Error limits | ± 0.05° |
| Communication interface | Incremental |
| Communication Interface detail | TTL / HTL |
| Factory setting | Factory setting: output level TTL |
| Number of signal channels | 6-channel |
| Initialization time | 32 ms, 30 ms 1) |
| Output frequency | ≤ 600 kHz |
| Load current | ≤ 30 mA |
| Power consumption | ≤ 0.7 W (without load) |
| Connection type | Male connector, M23, 12-pin, radial |
| Supply voltage | 4.5 ... 32 V |
| Mechanical design | Blind hollow shaft |
| Shaft diameter | 10 mm |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Aluminum die cast |
| Start up torque | 0.8 Ncm (+20 °C) |
| Operating torque | 0.6 Ncm (+20 °C) |
| Operating speed | ≤ 6,000 min⁻¹ 1) |
| Moment of inertia of the rotor | 40 gcm² |
| Bearing lifetime | 3.6 x 10^10 revolutions |
| Angular acceleration | ≤ 500,000 rad/s² |
| Operating temperature range | –40 °C ... +100 °C 2)–30 °C ... +100 °C 3) |
| Storage temperature range | –40 °C ... +100 °C, without package |
The Sick DFS60B-BDPA10000 incremental encoder offers accurate rotary sensing through its 10,000 PPR resolution, TTL/HTL interface, and sturdy 10 mm blind hollow shaft. As part of the DFS60 series, it includes a 6-channel signal layout and operates within a wide 4.5–32 V supply range. This encoder is suited for industrial automation environments where reliable incremental feedback and consistent performance are essential for controlled machine movement.
The Sick DFS60B-BDPA10000 incremental encoder supports conveyors, packaging systems, assembly machinery, and motor-driven automation lines. Its high pulse resolution enables precise shaft-speed and position tracking, while the TTL/HTL output ensures stable controller compatibility. The blind hollow shaft simplifies installation on drive shafts, and the aluminum die-cast housing delivers durability for continuous-duty industrial operations requiring dependable encoder accuracy.
The Sick DFS60B-BDPA10000 incremental encoder combines 10,000 PPR precision, reliable TTL/HTL signal output, and a durable 10 mm blind hollow shaft to ensure consistent and repeatable rotary measurement. As a member of the DFS60 encoder family, it offers long service life, stable feedback, and reliable operation over a broad temperature range. Engineers can depend on this Sick model for smooth integration and dependable performance in demanding automation systems.
