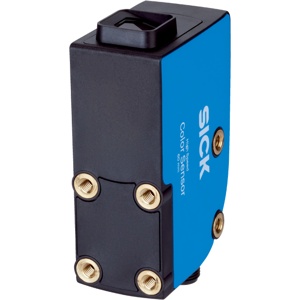

Home Brands Sick Color Sensors CS Series CSX-WNFA542282ZZZZ Sick CSX-WNFA542282ZZZZ Color Sensor The Sick CSX-WNFA542282ZZZZ Color Sensor offers a X housing design, 60 mm sensing distance, LED, RGB light source, NPN output, and Male connector M12, 8-pin connection type. Manufactured by Sick under the Sick Color Sensor category, this model belongs to the CS Series.
Brand Sick Product Type Color Sensor Model Number CSX-WNFA542282ZZZZ
Sick CSX-WNFA542282ZZZZ Color Sensor โ Technical Specifications Specification Value Dimensions (W x H x D) 30 mm x 53 mm x 78.5 mm Sensing distance 60 mm Sensing distance tolerance ยฑ 9 mm Housing design X housing Light source LED, RGB Wave length 460 nm, 530 nm, 625 nm Light spot size ร 12 mm Teach-in mode Single value teach-inMulti value teach-in Supply voltage 10.8 V DC ... 28.8 V DC Ripple โค 5 Vpp Switching frequency 13.8 kHz Response time 36 ยตs Switching output NPN Switching output (voltage) NPN: HIGH = VS / LOW โค 3 V Output (channel) 4 x hardware switching outputs Output current Imax. 100 mA 4) Input, teach-in (ET) Teach: U < 2 V Retention time (ET) 3 s, non-volatile memory Connection type Male connector M12, 8-pin Enclosure rating IP67 Weight 94 g Housing material VISTALยฎ Ambient operating temperature โ20 ยฐC ... +60 ยฐC Ambient temperature, storage โ25 ยฐC ... +75 ยฐC Unit weight 0.151 Kilograms Net unit weight 0.151 Kilograms Country of origin Germany
