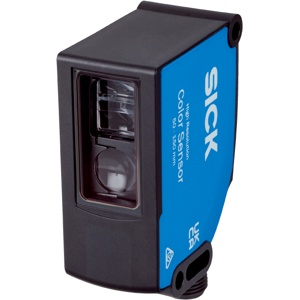

Home Brands Sick Color Sensors CS Series CSS-WBG4C4118RZZZZ Sick CSS-WBG4C4118RZZZZ Color Sensor The Sick CSS-WBG4C4118RZZZZ Color Sensor offers a S housing design, 50 mm ... 150 mm sensing distance, LED, RGB light source, Push-pull: PNP/NPN output, and Male connector M12, 8-pin connection type. Manufactured by Sick under the Sick Color Sensor category, this model belongs to the CS Series.
Brand Sick Product Type Color Sensor Model Number CSS-WBG4C4118RZZZZ
Sick CSS-WBG4C4118RZZZZ Color Sensor โ Technical Specifications Specification Value Dimensions (W x H x D) 26 mm x 62 mm x 47.5 mm Sensing distance 50 mm ... 150 mm Housing design S housing Light source LED, RGB Wave length 450 nm, 550 nm, 610 nm Light spot size ร 3.5 mm ... 6.5 mm Teach-in mode Single value teach-inMulti value teach-in Supply voltage 10.8 V DC ... 28.8 V DC Ripple โค 5 Vpp Switching frequency 4 kHz Response time 120 ยตs Switching output Push-pull: PNP/NPN Switching output (voltage) Push-pull: PNP/NPN HIGH = UV - 3 V/LOW โค 3 V Output (channel) 4 x hardware switching outputs24 x virtual switching outputs via RS-485 Output current Imax. 100 mA 4) Input, teach-in (ET) Teach: U = 10 V ... < VS Retention time (ET) 3 s, non-volatile memory Connection type Male connector M12, 8-pin Enclosure rating IP67 Weight 70 g Housing material VISTALยฎ Ambient operating temperature โ20 ยฐC ... +55 ยฐC Ambient temperature, storage โ25 ยฐC ... +75 ยฐC Unit weight 0.116 Kilograms Net unit weight 0.116 Kilograms Country of origin Germany
