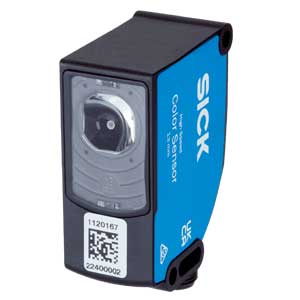

Sick CSS-WBGAD4118AA10Z Color Sensor
The Sick CSS-WBGAD4118AA10Z color sensor provides 50β500 mm sensing distance, RGB LED light source, push-pull PNP/NPN output, and IP67 protection industrial reliably. CSS-WBGAD4118AA10Z from Sick is a Sick 120 Β΅s Response Time Color Sensor featuring S housing, 120 Β΅s response time, 4 hardware switching outputs, 10.8β28.8 V DC supply, and M12 8-pin connector, listed under Sick Color Sensors within the CS Series.
| Brand | Sick |
| Product Type | Color Sensor |
| Product | CSS-WBGAD4118AA10Z |
Sick CSS-WBGAD4118AA10Z Color Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 26 mm x 62 mm x 47.5 mm |
| Sensing distance | 50 mm ... 500 mm |
| Sensing distance tolerance | - |
| Housing design | S housing |
| Light source | LED, RGB 1) |
| Wave length | 450 nm |
| Light spot size | Γ 8 mm ... 32 mm 2) |
| Light spot direction | Round, large |
| Adjustment | Continuous: 0 ... 999 |
| Output (channel) | 4 x hardware switching outputs |
| Supply voltage | 10.8 V DC ... 28.8 V DC 1) |
| Response time | 120 Β΅s |
| Switching output | Push-pull: PNP/NPN |
| Switching mode | - |
| Enclosure rating | IP67 |
| Ambient operating temperature | β20 Β°C ... +55 Β°C |
| Connection type | Male connector M12, 8-pin |
The CSS-WBGAD4118AA10Z Sick 120 Β΅s Response Time Color Sensor is a Color Sensor designed for fast and stable color detection in industrial automation systems. CSS-WBGAD4118AA10Z operates with a 50β500 mm sensing distance and an RGB LED light source, supporting consistent color recognition across varying target ranges. It belongs to the CS Series from Sick and provides push-pull PNP/NPN output for flexible system integration.
In industrial automation environments, the CSS-WBGAD4118AA10Z Sick 120 Β΅s Response Time Color Sensor is applied in conveyors, packaging machinery, automated assembly lines, and inspection stations. It supports color-based identification, sorting, and verification where fast response and stable detection are required. The large round light spot helps maintain reliable performance across moving or variably positioned objects.
The Sick CSS-WBGAD4118AA10Z Color Sensor combines defined sensing characteristics with IP67 enclosure protection for dependable operation in industrial conditions. With standardized voltage input, secure M12 connectivity, and controlled output behavior, CSS-WBGAD4118AA10Z integrates smoothly into automation architectures. As part of the CS Series from Sick, it meets long-term reliability expectations for industrial automation use.
