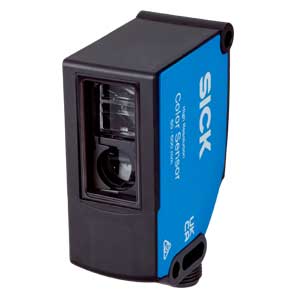

Sick CSS-WBGAD4115AA10Z Color Sensor
The Sick CSS-WBGAD4115AA10Z Color Sensor provides an RGB LED light source with a 50β500 mm sensing distance and 120 Β΅s response time. This S-housing model measures 26 mm Γ 62 mm Γ 47.5 mm, features a round light spot between Γ 8β32 mm, offers two push-pull switching outputs, and supports continuous adjustment from 0 to 999. It operates from 10.8β28.8 V DC, includes a 5-pin M12 connector, carries an IP67 rating, and functions between β20 Β°C and +55 Β°C. Learn more about Sick, explore Sick Color Sensors, and view the Sick CSS Series.
| Brand | Sick |
| Product Type | Color Sensor |
| Product | CSS-WBGAD4115AA10Z |
Sick CSS-WBGAD4115AA10Z Color Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 26 mm x 62 mm x 47.5 mm |
| Sensing distance | 50 mm ... 500 mm |
| Sensing distance tolerance | - |
| Housing design | S housing |
| Light source | LED, RGB 1) |
| Wave length | 450 nm |
| Light spot size | Γ 8 mm ... 32 mm 2) |
| Light spot direction | Round, large |
| Adjustment | Continuous: 0 ... 999 |
| Output (channel) | 2 Γ hardware switching outputs |
| Supply voltage | 10.8 V DC ... 28.8 V DC 1) |
| Response time | 120 Β΅s |
| Switching output | Push-pull: PNP/NPN |
| Switching mode | - |
| Enclosure rating | IP67 |
| Ambient operating temperature | β20 Β°C ... +55 Β°C |
| Connection type | Male connector M12, 5-pin |
The Sick CSS-WBGAD4115AA10Z Color Sensor is designed for precise color recognition in industrial automation tasks. The model CSS-WBGAD4115AA10Z uses a 50β500 mm sensing distance, a 120 Β΅s response time, and a round RGB LED light spot sized Γ 8β32 mm. As part of the Sick CSS Series, it supports stable color evaluation with push-pull outputs and continuous adjustment, making it suitable for material-based sorting and visual inspection requirements across automated workflows.
This sensor is widely used on conveyors, packaging systems, assembly machines, and quality monitoring stations. The RGB LED illumination enables repeatable detection across varying surface colors, while the IP67 enclosure supports dependable operation in dusty or humid environments. Its S-housing structure and 5-pin M12 connector allow secure mounting and easy integration, helping factories achieve consistent output where accurate color identification is essential.
The Sick CSS-WBGAD4115AA10Z Color Sensor combines RGB LED operation, adjustable configuration, and a wide detection range for reliable performance in industrial settings. The model CSS-WBGAD4115AA10Z maintains accuracy through fast response and stable switching, providing dependable sensing for production lines. Sickβs engineering quality ensures suitability for installations that require consistent color measurement and durable operation under routine factory conditions.
