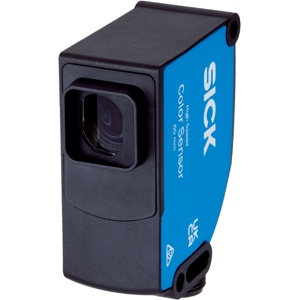

Sick CSS-WBF114118AA10Z Color Sensor
The Sick CSS-WBF114118AA10Z Color Sensor offers a S housing design, 13 mm sensing distance, LED, RGB light source, Push-pull: PNP/NPN output, and Male connector M12, 8-pin connection type. Manufactured by Sick under the Sick Color Sensor category, this model belongs to the CS Series.
| Brand | Sick |
| Product Type | Color Sensor |
| Model Number | CSS-WBF114118AA10Z |
Sick CSS-WBF114118AA10Z Color Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 26 mm x 62 mm x 47.5 mm |
| Sensing distance | 13 mm |
| Sensing distance tolerance | ± 5 mm |
| Housing design | S housing |
| Light source | LED, RGB |
| Wave length | 460 nm, 530 nm, 625 nm |
| Light spot size | 2 mm x 4 mm |
| Teach-in mode | Single value teach-inMulti value teach-in |
| Supply voltage | 10.8 V DC ... 28.8 V DC |
| Ripple | ≤ 5 Vpp |
| Switching frequency | 13.8 kHz |
| Response time | 36 µs |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V |
| Output (channel) | 4 x hardware switching outputs24 x virtual switching outputs via IO-Link |
| Output current Imax. | 100 mA 4) |
| Input, teach-in (ET) | Teach: U = 10 V ... < VS |
| Retention time (ET) | 3 s, non-volatile memory |
| Connection type | Male connector M12, 8-pin |
| Enclosure rating | IP67 |
| Weight | 68 g |
| Housing material | VISTAL® |
| Ambient operating temperature | –20 °C ... +60 °C |
| Ambient temperature, storage | –25 °C ... +75 °C |
| Unit weight | 0.103 Kilograms |
| Net unit weight | 0.103 Kilograms |
| Country of origin | Germany |
