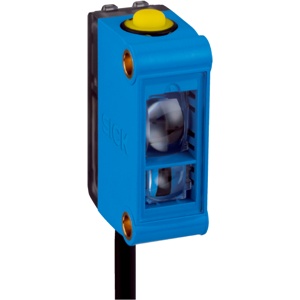

Sick CSM-WN111C4P Color Sensor
The Sick CSM-WN111C4P Color Sensor offers a Small design, β€ 12.5 mm sensing distance, LED, RGB light source, NPN output, and Cable open end, 4-wire, 2 m connection type. Manufactured by Sick under the Sick Color Sensor category, this model belongs to the CS Series.
| Brand | Sick |
| Product Type | Color Sensor |
| Model Number | CSM-WN111C4P |
Sick CSM-WN111C4P Color Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | β€ 12.5 mm |
| Sensing distance tolerance | Β± 3 mm |
| Housing design | Small |
| Light source | LED, RGB |
| Wave length | 640 nm, 525 nm, 470 nm |
| Light spot size | 1.9 mm x 9.4 mm |
| Teach-in mode | Teach-in static/dynamicET: Teach-in dynamic |
| Supply voltage | 12 V DC ... 24 V DC |
| Ripple | < 5 Vpp |
| Switching frequency | 1.7 kHz 4) |
| Response time | 300 Β΅s 5) |
| Switching output | NPN |
| Switching output (voltage) | NPN: HIGH = approx. UV / LOW β€ 2 V |
| Output (channel) | 1 color |
| Output current Imax. | < 100 mA 6) |
| Input, teach-in (ET) | NPN: Teach: U < 2 V, Run: U = 10 V ... < UV or open |
| Connection type | Cable open end, 4-wire, 2 m |
| Enclosure rating | IP67 |
| Weight | Approx. 25 g |
| Housing material | Plastic, ABS |
| Ambient operating temperature | β10 Β°C ... +55 Β°C |
| Ambient temperature, storage | β20 Β°C ... +75 Β°C |
| Unit weight | 88.000 Grams |
| Net unit weight | 88 Grams |
| Country of origin | Malaysia |
