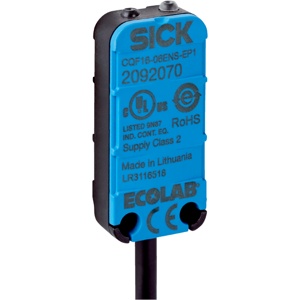

Sick CQF16-06ENSEW1 Proximity Sensor
The Sick CQF16-06ENSEW1 Proximity Sensor offers a Rectangular, 0.5 mm ... 6 mm sensing range, FlushNon-flush installation type, NO NPN output, and Cable, 4-wire, 2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Model Number | CQF16-06ENSEW1 |
Sick CQF16-06ENSEW1 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular |
| Sensing range Sn | 0.5 mm ... 6 mm |
| Installation type | FlushNon-flush |
| Switching frequency | 10 Hz |
| Connection type | Cable, 4-wire, 2 m |
| Switching output | NPN |
| Output function | NO |
| Electrical wiring | DC 4-wire |
| Items supplied | Mounting bracket (1x) |
| Supply voltage | 10 V ... 30 V |
| Ripple | β€ 10 % |
| Voltage drop | β€ 1.5 V DC |
| Current consumption | 13 mA |
| Time delay before availability | β€ 300 ms |
| Shock and vibration resistance | 30 g, 11 ms / 6 pos., 6 neg. per axis, 10 ... 150 Hz, 1.0 mm / 15 g |
| Ambient operating temperature | β25 Β°C ... +80 Β°C |
| Ambient temperature, storage | β40 Β°C ... +85 Β°C |
| Housing material | Plastic, PBT |
| Tightening torque, max. | 0.2 Nm |
| Temperature drift (of Sr) | Β± 20 % |
| Cable material | PVC |
| Conductor size | 0.14 mmΒ² |
