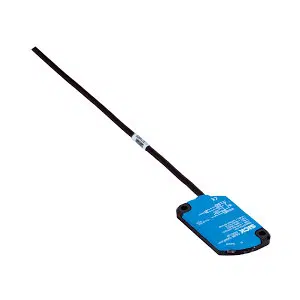

Sick CQ28-10NPP-KW1S05 Capacitive Sensor
The CQ28-10NPP-KW1S05 is a Sick Non-flush Capacitive Sensor with 1β10 mm sensing range and PNP output. Manufactured by Sick, this Sick Capacitive Proximity Sensor belongs to the CQ4 series and features a 1β10 mm sensing range, 10 Hz switching frequency, DC 3-wire PNP output, IP68 enclosure rating, rectangular housing (28 mm x 46 mm x 5.5 mm), non-flush installation, 0.3 m cable with M8 3-pin connector, NC or NO output function, and single teach-in button sensitivity adjustment.
| Brand | Sick |
| Product Type | Capacitive Proximity Sensor |
| Product | CQ28-10NPP-KW1S05 |
Sick CQ28-10NPP-KW1S05 Capacitive Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular |
| Dimensions (W x H x D) | 28 mm x 46 mm x 5.5 mm |
| Sensing range Sn | 1 mm ... 10 mm |
| Safe sensing range Sa | 7.2 mm |
| Installation type | Non-flush |
| Switching frequency | 10 Hz |
| Connection type | 0.3 m Cable with connector M8, 3-pin |
| Switching output | PNP |
| Output function | NC or NO |
| Electrical wiring | DC 3-wire |
| Adjustment | Single teach-in button (Sensitivity) |
| Enclosure rating | IP68 2) |
| Items supplied | - |
The CQ28-10NPP-KW1S05 Sick Non-flush Capacitive Sensor is part of the CQ4 series used in industrial automation applications. This model offers a 1β10 mm sensing range with a safe sensing range of 7.2 mm and operates at a 10 Hz switching frequency. It uses a DC 3-wire PNP output configuration and supports both NC and NO output functions. The CQ28-10NPP-KW1S05 from Sick is designed for controlled detection tasks in machine environments.
In automation systems, the CQ28-10NPP-KW1S05 is applied in conveyors, packaging units, assembly lines, and material handling equipment. Its slim rectangular housing supports non-flush installation in compact spaces. The single teach-in button allows quick sensitivity adjustment for different materials. With IP68 protection and an M8 connector cable, it supports reliable operation in environments exposed to moisture and dust.
The CQ28-10NPP-KW1S05 Sick Non-flush Capacitive Sensor reinforces Sickβs CQ4 series presence in capacitive detection solutions. With defined sensing range, DC 3-wire wiring, and IP68 enclosure rating, it fits standard industrial automation requirements in India. This model supports stable detection, simplified installation, and consistent switching performance for integration into machine control systems.
