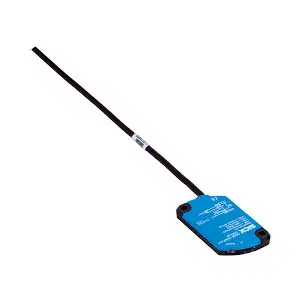

Sick CQ28-10NNP-KW1 Capacitive Sensor
The CQ28-10NNP-KW1 is a Sick NPN Capacitive Proximity Sensor with 1β10 mm sensing range and DC wiring. Manufactured by Sick, this Sick Capacitive Proximity Sensor belongs to the CQ4 series and features a 1β10 mm sensing range, 10 Hz switching frequency, DC 4-wire NPN output, IP68 enclosure rating, rectangular housing (28 mm x 46 mm x 5.5 mm), non-flush installation, 2 m cable connection, NC or NO output function, and single teach-in button sensitivity adjustment.
| Brand | Sick |
| Product Type | Capacitive Proximity Sensor |
| Product | CQ28-10NNP-KW1 |
Sick CQ28-10NNP-KW1 Capacitive Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular |
| Dimensions (W x H x D) | 28 mm x 46 mm x 5.5 mm |
| Sensing range Sn | 1 mm ... 10 mm |
| Safe sensing range Sa | 7.2 mm |
| Installation type | Non-flush |
| Switching frequency | 10 Hz |
| Connection type | 2m Cable |
| Switching output | NPN |
| Output function | NC or NO |
| Electrical wiring | DC 4-wire |
| Adjustment | Single teach-in button (Sensitivity) Cable (Sensitivity) |
| Enclosure rating | IP68 2) |
| Items supplied | - |
The CQ28-10NNP-KW1 Sick NPN Capacitive Proximity Sensor is part of the CQ4 series used in industrial automation systems. This model offers a 1β10 mm sensing range with a safe sensing range of 7.2 mm and operates at a 10 Hz switching frequency. It uses a DC 4-wire NPN output configuration and supports NC or NO output functions. The CQ28-10NNP-KW1 from Sick is intended for defined detection tasks in machine applications.
In factory automation, the CQ28-10NNP-KW1 is applied in conveyors, packaging lines, assembly stations, and material handling equipment. Its slim rectangular housing allows non-flush mounting in compact spaces. The single teach-in button simplifies sensitivity adjustment for different materials. With IP68 protection and a 2 m cable connection, it supports reliable operation in environments exposed to dust and moisture.
The CQ28-10NNP-KW1 Sick NPN Capacitive Proximity Sensor strengthens Sickβs CQ4 capacitive sensing portfolio. With specified sensing distance, DC 4-wire wiring, and IP68 enclosure rating, it fits standard industrial automation requirements in India. This model supports stable detection, structured wiring, and predictable switching behavior for integration into machine control systems.
