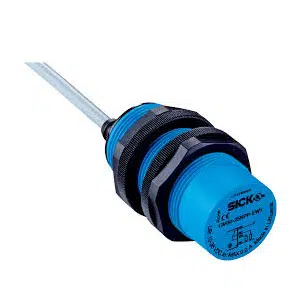

Sick CM30-25NAP-KW1 Capacitive Sensor
The Sick CM30-25NAP-KW1 capacitive sensor provides a 25 mm sensing range with M30 non-flush housing and AC wiring. This model includes NC or NO output, 10 Hz switching frequency, 2 m cable connection, and a potentiometer sensitivity adjustment. It belongs to Sick, listed under Sick capacitive proximity sensors and included in the Sick CM18 series. The IP67 enclosure rating allows use in demanding industrial environments.
| Brand | Sick |
| Product Type | Capacitive Proximity Sensor |
| Product | CM30-25NAP-KW1 |
Sick CM30-25NAP-KW1 Capacitive Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design |
| Thread size | M30 x 1.5 |
| Diameter | Γ 30 mm |
| Sensing range Sn | 4 mm ... 25 mm |
| Safe sensing range Sa | 18 mm |
| Installation type | Non-flush |
| Switching frequency | 10 Hz |
| Connection type | 2m Cable |
| Switching output | - |
| Output function | NC or NO |
| Output characteristic | - |
| Electrical wiring | AC 2-wire |
| Adjustment | Potentiometer, 11 turns (Sensitivity) |
| Enclosure rating | IP67 (According to EN 60529) |
| Items supplied | Mounting nut, PA12 plastic (2x) Screwdriver for potentiometer adjustment (1 x) |
The Sick CM30-25NAP-KW1 capacitive sensor is engineered for reliable detection of solids and liquids in industrial automation systems. The model delivers a 4β25 mm sensing range, M30 threaded housing, and AC 2-wire operation. As part of the Sick CM18 series, it supports applications requiring non-contact sensing with adjustable sensitivity for dependable process control.
This sensor is used in conveyors, packaging machinery, assembly stations, and material handling equipment. The non-flush installation enhances detection capability, while the 10 Hz switching frequency ensures stable operation in slower or cyclic processes. Its IP67 enclosure rating provides resistance to moisture, dust, and challenging operating conditions found in industrial environments.
The Sick CM30-25NAP-KW1 capacitive sensor offers a 25 mm detection range, non-flush design, and solid environmental protection suitable for continuous industrial use. Supported by the CM18 series structure and Sickβs engineering quality, it delivers consistent sensing performance and integrates easily into automation systems. This model is a reliable choice for facilities requiring accurate and repeatable detection.
