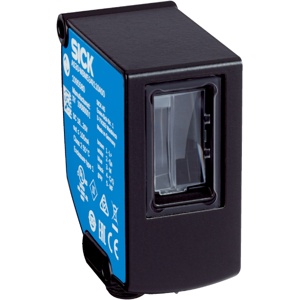

Sick AS30-WBM314I220A00: Array Sensors
The Sick AS30-WBM314I220A00 Array Sensor offers a Rectangular design, 20 mm ... 30 mm range, LED, White light source, Push-pull: PNP/NPN output, and Male connector M12, 5-pin connection type. Manufactured by Sick under the Sick Array Sensor category, this model belongs to the AS30 Series.
| Brand | Sick |
| Product Type | Array Sensor |
| Model Number | AS30-WBM314I220A00 |
Sick Array Sensors AS30-WBM314I220A00 Technical Specifications
| Specification | Value |
|---|---|
| Sensor principle | Proximity system, Reflector mode |
| Functional principle | Web guiding, positioning, Width measurement, Center point measurement |
| Principle of operation (default) | Width measurement |
| Dimensions (W x H x D) | 31 mm x 62 mm x 52.2 mm |
| Sensing distance | β€ 25 mm |
| Housing design | Rectangular |
| Working range | 20 mm ... 30 mm |
| Measurement range | 30 mm |
| Minimum detectable object (MDO) | 0.2 mm |
| Light source | LED, White |
| Wave length | 400 nm ... 700 nm |
| Light spot size | 38.9 mm x 11.1 mm |
| Repeatability | 0.03 mm 1) |
| Linearity (position value) | Β± 2 % |
| Resolution | 1 Β΅m |
| Adjustment | IO-Link, Display |
| Teach-in mode | Edge detectionArea detection |
| Supply voltage | 18 V ... 30 V |
| Ripple | β€ 5 V 1) |
| Current consumption | < 3.1 W 2) |
| Switching frequency | 500 Hz |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN HIGH = UV - 3 V/LOW β€ 3 V |
| Analog output | 4 mA ... 20 mA |
| Resolution of analog output | 12 bit |
| Output rate of analog output | 1 ms |
| Output current Imax. | < 100 mA |
| Initialization time | 0.48 s |
| Connection type | Male connector M12, 5-pin |
| Protection class | III 3) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 250 g |
| Housing material | Zinc diecast |
| Optics material | Anti-reflex coating |
| Cycle time | > 1.1 ms |
| Ambient operating temperature | β10 Β°C ... +55 Β°C |
| Ambient temperature, storage | β25 Β°C ... +75 Β°C |
| Country of origin | Germany |
