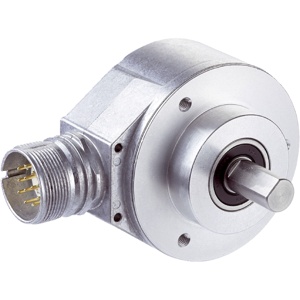

Sick AFM60B-S4AA004096 - Absolute Encoder
The Sick AFM60B-S4AA004096 Absolute Encoder from the Sick ARS60 Series is a multi-turn Absolute Encoder engineered for precision in industrial automation and motion control systems. Featuring a 12-bit (4096 steps) single-turn and 4-bit (16 revolutions) multi-turn resolution, it transmits accurate position data via an SSI communication interface. Designed with a 10 mm stainless-steel solid shaft and IP65/IP67 dual-sealed aluminum housing, the AFM60B-S4AA004096 ensures stable, long-life operation across robotics, packaging, and material handling applications in India.
| Brand | Sick |
| Product Type | Absolute Encoder |
| Model Number | AFM60B-S4AA004096 |
Sick Absolute Encoder AFM60B-S4AA004096 Technical Specifications
| Specification | Value |
|---|---|
| Number of steps per revolution (max. resolution) | 4,096 (12 bit) |
| Error limits G | 0.05Β° 1) |
| Repeatability standard deviation Οr | 0.002Β° 2) |
| Communication interface | SSI |
| Initialization time | 50 ms 1) |
| Code type | Gray |
| Connection type | Male connector, M23, 12-pin, radial |
| Supply voltage | 4.5 ... 32 V |
| Mechanical design | Solid shaft, face mount flange |
| Shaft diameter | 10 mm |
| Weight | 0.3 kg 1) |
| Housing material | Aluminum die cast |
| Start up torque | < 0.5 Ncm (+20 Β°C) |
| Operating torque | < 0.3 Ncm (+20 Β°C) |
| Permissible movement static | Β± 0.3 mm (radial)Β± 0.5 mm (axial) |
| Permissible movement dynamic | Β± 0.05 mm (radial)Β± 0.1 mm (axial) |
| Operating speed | β€ 9,000 minβ»ΒΉ 2) |
| Moment of inertia of the rotor | 6.2 gcmΒ² |
| Bearing lifetime | 3.0 x 10^9 revolutions |
| Angular acceleration | β€ 500,000 rad/sΒ² |
| Enclosure rating | IP65, shaft side (IEC 60529)IP67, housing side (IEC 60529) 2) |
| Operating temperature range | β40 Β°C ... +100 Β°C 3) |
| Storage temperature range | β40 Β°C ... +100 Β°C, without package |
| Permissible shaft loading | 40 N (radial)20 N (axial) |
| Number of revolutions | 16 (4 bit) |
| Power consumption | β€ 3 W (without load) |
| Shaft material | Stainless steel 1,4305 |
| Flange material | AlMgSi |
The Sick AFM60B-S4AA004096 Absolute Encoder from the ARS60 Series provides 4096 steps per revolution and 16 revolutions of multi-turn resolution for precise shaft positioning. With an SSI (Synchronous Serial Interface) and Gray code output, it offers smooth, interference-free communication with controllers. Built from AlMgSi aluminum alloy and equipped with a 10 mm stainless-steel shaft, it operates efficiently up to 9000 rpm while maintaining IP65/IP67 environmental protection. Backed by Sickβs engineering expertise, it ensures accurate, consistent performance for automation professionals.
In industrial automation environments, the AFM60B-S4AA004096 Encoder is widely deployed in conveyor systems, packaging machinery, robotic arms, and servo motor assemblies. It provides reliable angular and position data essential for motion synchronization in fast-moving production lines. Thanks to its operating temperature range of β40Β°C to +100Β°C and low power consumption (β€3W), it performs reliably under vibration, heat, and humidity. Machine builders across India value this encoder for its stability, compact mounting, and long bearing life β ideal for OEMs and factory automation setups.
With decades of innovation, Sick continues to lead in industrial sensing and encoder technology. The AFM60B-S4AA004096 Absolute Encoder is manufactured under ISO-certified processes to ensure long-term precision, featuring a bearing lifetime of over 3.0 Γ 10βΉ revolutions. Its robust mechanical design and dual-enclosure sealing guarantee reliability even in dusty or moisture-prone environments. Sickβs dedication to engineering quality, repeatability, and safety makes it a trusted choice for automation engineers, OEMs, and control system integrators worldwide.
The Sick AFM60B-S4AA004096 Absolute Encoder delivers multi-turn accuracy, rugged construction, and stable SSI output for demanding industrial automation tasks. Its combination of mechanical endurance, electrical precision, and thermal resilience ensures dependable operation in Indiaβs manufacturing and process industries. Trusted by engineers and system designers, this ARS60 Series Encoder exemplifies Sickβs commitment to reliability and precision β fully supported by the Sick global service network.
