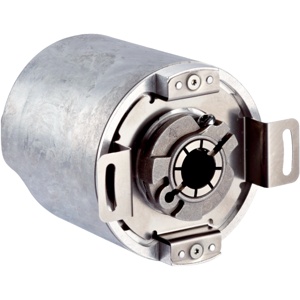

Sick AFM60A-BGNB018X12 - Absolute Encoder
The Sick AFM60A-BGNB018X12 Absolute Encoder from the Sick ARS60 Series is a high-resolution PROFINET Absolute Encoder built for industrial automation and rotary feedback applications. It provides 262,144 steps per revolution (18-bit single-turn) and 4,096 revolutions (12-bit multi-turn), ensuring accurate position detection. Featuring a 14 mm blind hollow shaft, IP65/IP67 aluminum housing, and a 10โ30V DC power range, the AFM60A-BGNB018X12 delivers reliable data transmission and durability in robotic, packaging, and machine control environments across India.
| Brand | Sick |
| Product Type | Absolute Encoder |
| Model Number | AFM60A-BGNB018X12 |
Sick Absolute Encoder AFM60A-BGNB018X12 Technical Specifications
| Specification | Value |
|---|---|
| Number of steps per revolution (max. resolution) | 262,144 (18 bit) |
| Error limits G | 0.03ยฐ 1) |
| Repeatability standard deviation ฯr | 0.002ยฐ 2) |
| Communication interface | PROFINET |
| Initialization time | 6 s |
| Connection type | Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial 1) 2) |
| Supply voltage | 10 ... 30 V |
| Mechanical design | Blind hollow shaft |
| Shaft diameter | 14 mm |
| Weight | 0.2 kg |
| Housing material | Aluminum |
| Start up torque | 0.8 Ncm (+20 ยฐC) |
| Operating torque | 0.6 Ncm (+20 ยฐC) |
| Permissible movement static | ยฑ 0.3 mm (radial)ยฑ 0.5 mm (axial) |
| Permissible movement dynamic | ยฑ 0.1 mm (radial)ยฑ 0.2 mm (axial) |
| Operating speed | โค 6,000 minโปยน 1) |
| Moment of inertia of the rotor | 40 gcmยฒ |
| Bearing lifetime | 3 x 10^9 revolutions |
| Angular acceleration | โค 500,000 rad/sยฒ |
| Enclosure rating | IP65, shaft side (IEC 60529)IP67, housing side (IEC 60529) 1) |
| Operating temperature range | โ40 ยฐC ... +85 ยฐC |
| Storage temperature range | โ40 ยฐC ... +100 ยฐC, without package |
| Permissible shaft loading | 40 N (radial)20 N (axial) |
| Number of revolutions | 4,096 (12 bit) |
| Power consumption | โค 3 W (without load) |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
The Sick AFM60A-BGNB018X12 Absolute Encoder from the ARS60 Series offers 18-bit single-turn resolution and 12-bit multi-turn capability for precise rotary position measurement. Equipped with a PROFINET interface, it ensures stable communication with PLCs and motion controllers in complex automation systems. The encoderโs blind hollow shaft (14 mm), IP65/IP67 dual protection, and aluminum housing make it suitable for demanding industrial applications. Operating at speeds up to 6,000 rpm and supporting angular acceleration up to 500,000 rad/sยฒ, it provides long-term reliability and accurate feedback in continuous operation.
In industrial automation, the AFM60A-BGNB018X12 Encoder is ideal for robotic systems, packaging machinery, conveyor drives, and material handling equipment. Its PROFINET communication allows high-speed data exchange, ensuring real-time position monitoring and smooth multi-axis coordination. With a โ40ยฐC to +85ยฐC temperature range and 3 ร 10โน bearing revolutions service life, it withstands vibration, dust, and mechanical stress. Engineers rely on this Absolute Encoder to enhance process accuracy and minimize downtime in manufacturing, logistics, and assembly automation systems across India.
Globally trusted for its quality and engineering excellence, Sick designs encoders that combine precision, durability, and interoperability. The AFM60A-BGNB018X12 Absolute Encoder is manufactured under ISO-certified standards, delivering repeatability of 0.002ยฐ and superior mechanical stability. Its stainless-steel shaft, aluminum housing, and IP-rated protection ensure long operational life even in harsh conditions. Sickโs decades of expertise in automation sensing and feedback systems position this encoder as a reliable choice for OEMs, plant engineers, and integrators seeking dependable performance in high-precision applications.
The Sick AFM60A-BGNB018X12 Absolute Encoder combines PROFINET connectivity, high-resolution sensing, and rugged mechanical design to deliver accurate motion feedback across automation environments. With IP67 protection, consistent performance, and seamless PLC integration, it ensures precise control and system efficiency. Trusted by engineers across India, the AFM60A-BGNB018X12 Encoder stands as a dependable solution for long-term, maintenance-free operation โ backed by the Sick global support and service network.
