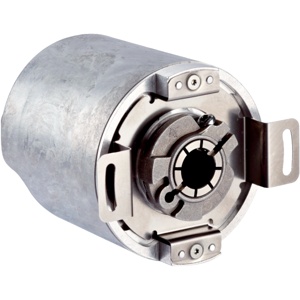

Sick AFM60A-BENB018X12 - Absolute Encoder
The Sick AFM60A-BENB018X12 Absolute Encoder from the Sick ARS60 Series is a precision PROFINET Absolute Encoder designed for industrial automation and motion control systems. Offering 262,144 steps per revolution (18-bit single-turn) and 4,096 revolutions (12-bit multi-turn), it ensures exceptional accuracy in rotary position feedback. Built with a 12 mm blind hollow shaft, IP65/IP67-rated aluminum housing, and a 10β30V DC supply, the AFM60A-BENB018X12 delivers robust and reliable operation across conveyor systems, servo drives, and packaging lines in Indiaβs automation industry.
| Brand | Sick |
| Product Type | Absolute Encoder |
| Model Number | AFM60A-BENB018X12 |
Sick Absolute Encoder AFM60A-BENB018X12 Technical Specifications
| Specification | Value |
|---|---|
| Number of steps per revolution (max. resolution) | 262,144 (18 bit) |
| Error limits G | 0.03Β° 1) |
| Repeatability standard deviation Οr | 0.002Β° 2) |
| Communication interface | PROFINET |
| Initialization time | 6 s |
| Connection type | Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial 1) 2) |
| Supply voltage | 10 ... 30 V |
| Mechanical design | Blind hollow shaft |
| Shaft diameter | 12 mm |
| Weight | 0.2 kg |
| Housing material | Aluminum |
| Start up torque | 0.8 Ncm (+20 Β°C) |
| Operating torque | 0.6 Ncm (+20 Β°C) |
| Operating speed | β€ 6,000 minβ»ΒΉ 1) |
| Moment of inertia of the rotor | 40 gcmΒ² |
| Bearing lifetime | 3 x 10^9 revolutions |
| Angular acceleration | β€ 500,000 rad/sΒ² |
| Enclosure rating | IP65, shaft side (IEC 60529)IP67, housing side (IEC 60529) 1) |
| Operating temperature range | β40 Β°C ... +85 Β°C |
| Storage temperature range | β40 Β°C ... +100 Β°C, without package |
| Permissible shaft loading | 80 N (radial)40 N (axial) |
| Number of revolutions | 4,096 (12 bit) |
| Power consumption | β€ 3 W (without load) |
| Shaft material | Stainless steel 1,4305 |
| Flange material | AlMgSi |
The Sick AFM60A-BENB018X12 Absolute Encoder from the ARS60 Series combines 18-bit single-turn and 12-bit multi-turn resolution to achieve accurate position detection and long-term motion tracking. With a PROFINET communication interface, it enables real-time data exchange and precise synchronization with industrial PLCs and controllers. The blind hollow shaft (12 mm), IP65/IP67 housing, and repeatability of 0.002Β° ensure stability under high mechanical stress. Operating speeds of up to 6,000 rpm and a bearing life of 3 Γ 10βΉ revolutions make it ideal for continuous, high-performance applications.
In industrial automation, the AFM60A-BENB018X12 Encoder is suited for robotics, packaging machinery, conveyor systems, and servo drive control. Its PROFINET interface ensures deterministic communication and fast data transmission, improving operational efficiency in multi-axis control environments. The encoderβs robust design and β40Β°C to +85Β°C operating range make it reliable for harsh industrial settings. Across factories in India, engineers use this Absolute Encoder to enhance machine precision, reduce downtime, and maintain synchronization in automated motion systems.
Renowned globally for industrial sensing technology, Sick builds its encoders to the highest standards of accuracy and endurance. The AFM60A-BENB018X12 Absolute Encoder is manufactured under ISO-certified quality systems, ensuring mechanical strength and long service life. Its stainless-steel shaft, durable AlMgSi housing, and PROFINET networking reflect Sickβs expertise in industrial communication and feedback control. Supported by Sickβs global service network and engineering assistance, this encoder stands as a trusted solution among OEMs, automation specialists, and maintenance engineers seeking reliable feedback solutions.
The Sick AFM60A-BENB018X12 Absolute Encoder offers high-resolution accuracy, PROFINET connectivity, and durable construction for consistent feedback in motion control systems. Designed for precision, speed, and longevity, it helps engineers achieve stable, synchronized operation in modern industrial setups. Backed by Sickβs support and service infrastructure, the AFM60A-BENB018X12 Encoder remains a trusted choice for automation professionals across India who demand reliability and precision in every revolution.
