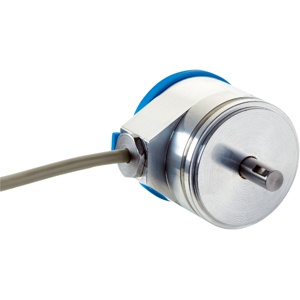

Sick ACM36-K1K0-K01 - Absolute Encoder

Name: Sick ACM36-K1K0-K01
Brand: Sick
SKU: ACM36-K1K0-K01
Rating: 4.8 (4 reviews)

The Sick ACM36-K1K0-K01 Absolute Encoder from the Sick ARS60 Series is a high-precision analog absolute encoder designed for industrial automation and motion control applications. It provides 2,979 steps per revolution and a 19–33V DC supply voltage for stable analog output signals. Featuring a 6 mm solid stainless-steel shaft, servo flange design, and IP65-rated aluminum housing, the ACM36-K1K0-K01 ensures precise position feedback and long-term reliability in packaging lines, robotics, and machine control environments across India.

Datasheet

Brand	Sick
Product Type	Absolute Encoder
Model Number	ACM36-K1K0-K01

Sick Absolute Encoder ACM36-K1K0-K01 Technical Specifications

Specification	Value
Number of steps per revolution (max. resolution)	2,979
Error limits G	0.03° 1)
Repeatability standard deviation σr	0.002° 2)
Communication interface	Analog
Initialization time	6 s
Connection type	Cable, radial, 1.5 m
Supply voltage	19 ... 33 V DC
Mechanical design	Solid shaft, Servo flange
Shaft diameter	6 mm
Weight	0.1 kg
Housing material	AlMgSi
Start up torque	0.5 Ncm (+20 °C)
Operating torque	0.2 Ncm (+20 °C)
Permissible movement static	± 0.3 mm (radial)± 0.5 mm (axial)
Permissible movement dynamic	± 0.05 mm (radial)± 0.1 mm (axial)
Operating speed	≤ 10,000 min⁻¹
Moment of inertia of the rotor	10 gcm²
Bearing lifetime	1 x 10^6 revolutions
Angular acceleration	≤ 500,000 rad/s²
Enclosure rating	IP65
Operating temperature range	–30 °C ... +80 °C
Storage temperature range	–40 °C ... +100 °C, without package
Permissible shaft loading	80 N (radial)40 N (axial)
Number of revolutions	4,096 (12 bit)
Power consumption	≤ 3 W (without load)
Shaft material	Stainless steel
Flange material	Aluminum

The Sick ACM36-K1K0-K01 Absolute Encoder from the ARS60 Series delivers dependable analog feedback with 2,979 steps per revolution and exceptional repeatability of 0.002°. It features a 6 mm solid shaft and servo flange built from durable AlMgSi aluminum, operating efficiently at speeds up to 10,000 rpm. The encoder’s IP65 enclosure ensures protection from dust and moisture, while its analog output provides smooth and accurate position tracking for servo control and motor feedback systems in industrial automation.

Used across diverse industrial automation and machine control setups, the ACM36-K1K0-K01 Encoder plays a key role in packaging lines, conveyor systems, CNC machinery, and robotic assemblies. Its analog interface allows continuous position feedback to PLCs, enabling precise control in speed regulation and positioning systems. The encoder’s low startup torque and wide operating temperature range (–30°C to +80°C) make it suitable for dynamic mechanical applications. Engineers in India rely on its 1 × 10⁶ bearing revolutions life and robust design to minimize downtime in production environments.

Globally recognized for its engineering precision, Sick manufactures high-performance encoders like the ACM36-K1K0-K01 under ISO-certified standards to ensure accuracy and long service life. Its robust construction, corrosion-resistant stainless-steel shaft, and reliable analog signal transmission make it ideal for OEMs, system integrators, and industrial end-users seeking consistent performance. With decades of expertise in sensing and automation technology, Sick guarantees accuracy, endurance, and integration support for motion control and automation industries worldwide.

The Sick ACM36-K1K0-K01 Absolute Encoder provides analog precision, rugged mechanical reliability, and thermal endurance for critical automation systems. With IP65 sealing, excellent signal stability, and mechanical longevity, it is ideal for factory automation, robotics, and servo systems in India. Engineers trust the ACM36-K1K0-K01 Encoder for dependable performance and durability — backed by the global Sick service and support network.
