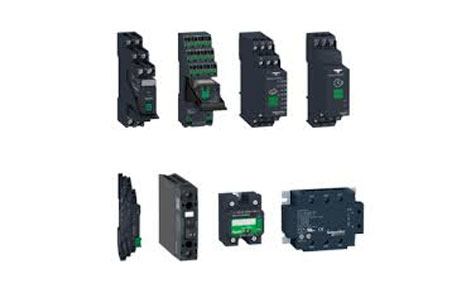

Schneider Relays - Miniature & Power Relay
<:contentReference[oaicite:0]{index=0} relays are electrical switching devices used to control, isolate, and signal circuits within industrial automation systems worldwide facilities. They operate through electromagnetic or solid state mechanisms to open or close contacts in response to control inputs, enabling logical switching, signal amplification, and electrical isolation between control and load circuits across machines, panels, and process equipment. Selection is determined by coil or control voltage, contact configuration, rated current and voltage, switching frequency, insulation level, mounting method, response time, environmental rating, and compliance with IEC and IS standards for dependable operation in industrial environments. Schneider relays are electrically actuated switching components, plug-in or panel-mounted in structure, classified by actuation technology, contact form, and load rating, interfacing through control voltage inputs and metallic or semiconductor contacts within standardized industrial control and automation architectures.
Schneider Relays - Slim Relay
Contact Configuration: Options range from 1 changeover (CO) to 4 CO contacts.
- Current Rating: Capable of handling up to 30 A.
- Versatility: Suitable for a wide range of industrial applications.

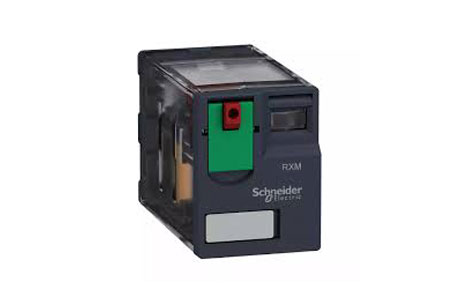

Schneider Miniature Relay
Type: Miniature plug-in relay with 4 changeover contacts (CO).
- Current Rating: Rated for 6 A.
- Voltage: Operates with a 24 V DC coil.
- Indicators: Includes an LED for easy status identification.
- Applications: Suitable for a variety of automation and control applications.
Schneider Power Relay
Types: Includes interface, miniature, and power electromechanical relays.
- Contact Configurations: Available with 1 to 4 changeover (CO) contacts.
- Current Rating: Suitable for applications up to 30 A.
- Reliability: Engineered for robust performance in diverse settings.

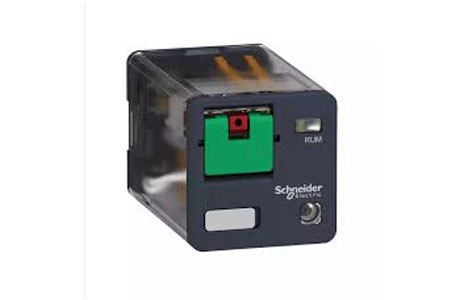

Schneider Electric Relay: Universal
Contact Configuration: Options range from 1 changeover (CO) to 4 CO contacts.
- Current Rating: Capable of handling up to 30 A.
- Versatility: Suitable for a wide range of industrial applications.
Schneider Electric’s Harmony range includes various types of automation relays such as control, electromechanical, solid-state, and timer relays. These products are designed to monitor and manage abnormal conditions effectively across different phases, currents, voltages, frequencies, speeds, or temperatures. They also control liquid levels and process rates, with options available in conventional dials or with Near Field Communication (NFC) technology, ensuring versatility and innovation in industrial applications.
Frequently Asked Questions
What is the function of the Schneider relay?
The function of a Schneider relay is to control an electrical circuit by opening and closing contacts in another circuit. As an electromechanical switch, it allows a low power signal to control a higher power circuit, facilitating safe and efficient operation in various applications. This makes Schneider relays essential for automation and control systems, where they manage power distribution, motor starts, and signal conditioning.
What is the function of 24VDC relay?
A 24VDC relay is used to control electrical circuits by opening and closing contacts in a separate circuit. It operates with a 24-volt direct current (DC) supply, making it ideal for automotive, industrial automation, and telecommunications applications. This type of relay is capable of switching high currents and is commonly used to operate solenoids, motors, and other high-power components efficiently and safely.
How does a relay work?
A relay is an electromechanical switch that uses an electromagnet to mechanically operate a set of switch contacts. When an electrical current flows through the coil of the relay, it creates a magnetic field that attracts a lever and changes the switch contacts. This action allows the relay to control a larger electrical load with a small input signal, effectively enabling low power circuits to control larger power loads safely and efficiently.
Find the right Schneider Relays for your industry needs at IndMALL.
