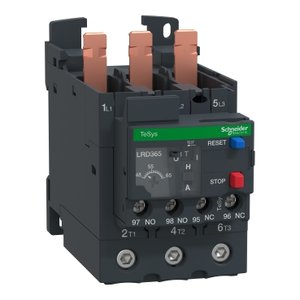

LRD3357: Schneider Electric 6 Kv Impulse Voltage Relay

Technical Specifications of Schneider Electric 6 Kv Impulse Voltage Relay LRD3357:

Range	TeSys
Control Type	Red push-button: stopBlue push-button: reset
IP Degree Protection	IP20 conforming to IEC 60529
Mounting Support	Plate, with specific accessoriesRail, with specific accessoriesUnder contactor

Schneider Electric 6 Kv Impulse Voltage Relay LRD3357 Technical Specifications:

Specification	Value
Device short name	LRD
Range	TeSys
Product name	TeSys LRDTeSys Deca
[Ith] conventional free air thermal current	5 A for signalling circuit
Height	81 mm
IP degree of protection	IP20 conforming to IEC 60529
Phase failure sensitivity	Tripping current 130 % of Ir on two phase, the last one at 0
Temperature compensation	-20…60 °C
Auxiliary contact composition	1 NO + 1 NC
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Thermal overload class	Class 10A conforming to IEC 60947-4-1
Network type	DCAC
Tripping threshold	1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Control type	Red push-button: stopBlue push-button: reset
Mechanical robustness	Vibrations: 6 Gn conforming to IEC 60068-2-6Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
[Ue] rated operational voltage	1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Associated fuse rating	4 A gG for signalling circuit4 A BS for signalling circuit
Product certifications	IECULCSACCCEACATEX INERISUKCA
Permissible current	0.72 A at 500 V AC-15 for signalling circuit0.06 A at 440 V DC-13 for signalling circuit
Depth	115 mm
Width	70 mm
Ambient air temperature for storage	-60…70 °C
Climatic withstand	conforming to IACS E10
Ambient air temperature for operation	-20…60 °C without derating conforming to IEC 60947-4-1
Dielectric strength	2.2 kV at 50 Hz conforming to IEC 60947-1
Thermal protection adjustment range	37…50 A
Flame retardance	V1 conforming to UL 94
Tightening torque	Control circuit: 1.7 N.m - on screw clamp terminalsPower circuit: 9 N.m - on screw clamp terminals
Mounting support	Plate, with specific accessoriesRail, with specific accessoriesUnder contactor
Relay application	Motor protection
Net weight	0.51 kg

Ask for the Pricing of Schneider Electric 6 Kv Impulse Voltage Relay LRD3357 at unbeatable prices. Detailed Specifications of LRD3357 features device short name LRD, from the TeSys range. The product, known as TeSys LRDTeSys Deca, is designed for reliable thermal protection in motor control applications. It has a conventional free air thermal current [Ith] of 5 A for signalling circuit, making it suitable for demanding environments. With a height of 81 mm and an IP20 conforming to IEC 60529, it provides protection against solid objects. The sensor operates efficiently in ambient temperatures ranging from -20…60 °C, with temperature compensation to maintain performance. The auxiliary contact composition includes 1 NO + 1 NC, and it features a thermal overload Class 10A conforming to IEC 60947-4-1. It supports both DCAC network types. The control type consists of a Red push-button: stopBlue push-button: reset. Now's the Time to Secure a Quote for your requirement of Schneider Electric 6 Kv Impulse Voltage Relay. We're committed to offering more favorable pricing and more responsive support than other Traders.
