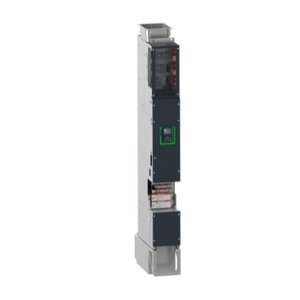

Schneider ATV6A0C13T6 Variable Speed Drive
The Schneider ATV6A0C13T6 Variable Speed Drive offers a - motor power, 2-wire RS 485 for Modbus serial, 3 phases. Manufactured by Schneider under the Schneider Variable Speed Drive (VSD) category, this model belongs to the ATV600 Series.
| Brand | Schneider |
| Product Type | VFD(Variable Frequency Drive) |
| Product | ATV6A0C13T6 |
Schneider ATV6A0C13T6 Variable Speed Drive – Technical Specifications
| Specification | Value |
|---|---|
| Degree of protection | UL type 1 conforming to UL 61800-5-1 (cabinet integration)UL type 12 conforming to UL 61800-5-1 (cabinet integration) |
| Supply frequency | 50...60 Hz - 5...5 % |
| Vibration resistance | 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-60.5 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 61800-5-1IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 60529 |
| Speed drive output frequency | 0…500 Hz |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Product or component type | Variable speed drive |
| Output voltage | <= power supply voltage |
| Asynchronous motor control profile | Constant torque standardVariable torque standardOptimized torque mode |
| Mounting mode | Cabinet mount |
| Ambient air temperature for storage | -40…70 °C |
| Continuous output current | 145.0 A at 2.5 kHz normal duty125.0 A at 2.5 kHz heavy duty |
| Relay output type | - |
| Minimum switching current | - |
| Electrical connection | Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16Line side: screw terminalMotor: M10 x 2 bars |
| Synchronous motor control profile | Permanent magnet motorSynchronous reluctance motor |
| Physical interface | 2-wire RS 485 for Modbus serial |
| Pollution degree | 2 conforming to IEC 61800-5-1 |
| Type of polarization | No impedance for Modbus serial |
| Product destination | Synchronous motorsAsynchronous motors |
| Number of preset speeds | 16 preset speeds |
| Operating altitude | < 2000 m with current derating above 1000m |
| Apparent power | 136 kVA at 600 V normal duty116 kVA at 600 V heavy duty |
| [Us] rated supply voltage | 600 V - 15...10 % |
| Ambient air temperature for operation | -10…40 °C without derating40…50 °C with derating factor |
| Supply | - |
| Switching frequency | 2...4.9 kHz adjustable with derating factor |
| Motor power kW | - |
| EMC filter | Integrated with 300 m conforming to IEC 61800-3 category C3 |
| Communication port protocol | EthernetModbus serialModbus TCP |
| Analogue input type | - |
| Maximum switching current | - |
| Range of product | Altivar Process ATV600 |
| Shock resistance | 4 gn for 11 ms conforming to IEC 60068-2-27 |
| Power dissipation in W | Forced convection: 2510 W, switching frequency 2.5 kHz (normal duty)Forced convection: 2190 W, switching frequency 2.5 kHz (heavy duty) |
| Nominal switching frequency | 2.5 kHz |
| Motor power hp | 150.0 hp at 600 V normal duty125.0 hp at 600 V heavy duty |
| Network number of phases | 3 phases |
Obtain a Quote for Schneider 150 HP Variable Speed Drive ATV6A0C13T6 at economical prices. Specifications Overview for ATV6A0C13T6 reveals Altivar Process ATV600 range, with top-notch specifications. The supply frequency is 50...60 Hz - 5...5 %, while the speed drive output frequency ranges from 0…500 Hz, ensuring flexibility in applications. The output voltage is equal to or less than the <= power supply voltage, and the sensor is designed for Cabinet mount. It features a 2-wire RS 485 for Modbus serial physical interface communication, supporting efficient data transfer. The sensor operates at altitudes below < 2000 m with current derating above 1000m. The switching frequency is adjustable between 2...4.9 kHz adjustable with derating factor, providing precise control. Take the First Step with a Quote for your requirement of Schneider 150 HP Variable Speed Drive. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
