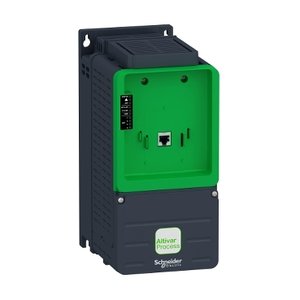

Schneider ATV630U55N4Z Variable Speed Drive

Name: Schneider Electric ATV630U55N4Z
Brand: Schneider
SKU: ATV630U55N4Z
Rating: 4.8 (4 reviews)

The Schneider ATV630U55N4Z Variable Speed Drive offers a 7.5 hp normal duty5 hp heavy duty motor power, Cabinet mount, 10.4 A input current. Manufactured by Schneider under the Schneider Variable Speed Drive (VSD) category, this model belongs to the ATV600 Series.

Datasheet

Brand	Schneide
Product Type	VFD(Variable Frequency Drive)
Product	ATV630U55N4Z

Schneider ATV630U55N4Z Variable Speed Drive – Technical Specifications

Specification	Value
Maximum input current	10.4 A
Electrical connection	Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16Motor: screw terminal 4...6 mm²/AWG 12...AWG 10Line side: screw terminal 2.5...6 mm²/AWG 14...AWG 10
Power dissipation in W	Natural convection: 36 W at 380 V, switching frequency 4 kHzForced convection: 145 W at 380 V, switching frequency 4 kHz
Overvoltage category	III
Net weight	3.9 kg
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Relay output type	Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cyclesConfigurable relay logic R2: sequence relay NO electrical durability 100000 cyclesConfigurable relay logic R3: sequence relay NO electrical durability 100000 cycles
Frequency resolution	Display unit: 0.1 HzAnalog input: 0.012/50 Hz
Output voltage	<= power supply voltage
Insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
Product or component type	Variable speed drive
Discrete output type	Relay outputs R1A, R1B, R1C 250 V AC 3000 mARelay outputs R1A, R1B, R1C 30 V DC 3000 mARelay outputs R2A, R2C 250 V AC 5000 mARelay outputs R2A, R2C 30 V DC 5000 mARelay outputs R3A, R3C 250 V AC 5000 mARelay outputs R3A, R3C 30 V DC 5000 mA
Nominal switching frequency	4 kHz
Supply	External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protectionInternal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protectionInternal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection
Maximum transient current	14 A during 60 s (normal duty)14 A during 60 s (heavy duty)
Relay output number	3
Type of polarization	No impedance
Product specific application	Process and utilities
Volume of cooling air	38 m3/h
Connector type	RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCPRJ45 (on the remote graphic terminal) for Modbus serial
Refresh time	Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Method of access	Slave Modbus TCP
Product destination	Asynchronous motorsSynchronous motors
Minimum switching current	Relay output R1, R2, R3: 5 mA at 24 V DC
Accuracy	+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Ambient air temperature for storage	-40…70 °C
Motor power hp	7.5 hp normal duty5 hp heavy duty
Transmission rate	10, 100 Mbits4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Maximum THDI	<48 % full load conforming to IEC 61000-3-12
Height	285 mm
Type of cooling	Forced convection
Motor power kW	5.5 kW (normal duty)4 kW (heavy duty)
Number of Units in Package 1	1
Physical interface	Ethernet2-wire RS 485
Switching frequency	2...12 kHz adjustable4...12 kHz with derating factor
Apparent power	7.6 kVA at 480 V (normal duty)6 kVA at 480 V (heavy duty)
Standards	UL 508CIEC 61800-3IEC 61800-3 environment 1 category C2EN/IEC 61800-3 environment 2 category C3IEC 61800-5-1IEC 61000-3-12IEC 60721-3IEC 61508IEC 13849-1
Operating position	Vertical +/- 10 degree
Discrete input logic	Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1)Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1)
Package 2 Length	80.000 cm
Range of product	Altivar Process ATV600
[Us] rated supply voltage	380...480 V - 15...10 %
Permissible temporary current boost	1.1 x In during 60 s (normal duty)1.5 x In during 60 s (heavy duty)
Marking	CE
Analogue input number	3
Asynchronous motor control profile	Constant torque standardVariable torque standardOptimized torque mode
Enclosure mounting	With heat sink
Isolation	Between power and control terminals
Ambient air temperature for operation	-15…50 °C (without derating)50…60 °C (with derating factor)
Vibration resistance	1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-61 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Supply frequency	50...60 Hz - 5...5 %
Acceleration and deceleration ramps	Linear adjustable separately from 0.01...9999 s
Analogue output number	2
Pollution degree	2

Mail Us for your needs in Schneider Altivar Process ATV630 5.5kW VSD ATV630U55N4Z with budget-friendly prices. The Main Technical Parameters of ATV630U55N4Z include Altivar Process ATV600 range, designed for Process and utilities applications. It has a maximum input current of 10.4 A, with a frequency resolution of Display unit: 0.1 HzAnalog input: 0.012/50 Hz. The output voltage is equal to or less than the <= power supply voltage, while the maximum transient current reaches 14 A during 60 s (normal duty)14 A during 60 s (heavy duty) operations. The sensor features a motor power of 7.5 hp normal duty5 hp heavy duty. Its height is 285 mm, and the physical interface includes Ethernet2-wire RS 485. The switching frequency is 2...12 kHz adjustable4...12 kHz with derating factor. It operates at a rated supply voltage [Us] of 380...480 V - 15...10 % with a supply frequency of 50...60 Hz - 5...5 %. The maximum output frequency is 500 kHz, with a Cabinet mount mode for secure installation. Customize Your Experience with a Quote for your requirement of Schneider Altivar Process ATV630 5.5kW VSD. Experience the difference with our competitive pricing and superior support over other Suppliers.
