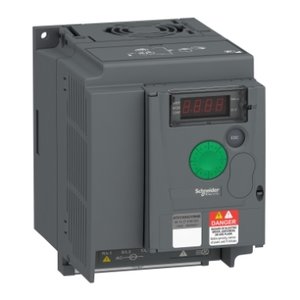

Schneider ATV310HU30N4E Variable Speed Drive
The Schneider ATV310HU30N4E is a 3 HP Variable Frequency Drive (VFD) from the Easy Altivar 310 series, engineered for industrial motor control across a range of applications.
| Brand | Schneider |
| Product Type | VFD - Variable Frequency Drive |
| Model Number | ATV310HU30N4E |
Schneider ATV310HU30N4E Variable Speed Drive – Technical Specifications
| Specification | Value |
|---|---|
| Minimum switching current | 5 mA at 24 V DC for logic relay |
| Analogue output number | 1 |
| Height | 184 mm |
| Speed drive output frequency | 0.5…400 Hz |
| Unit Type of Package 2 | S03 |
| Time constant | 20 ms +/- 1 ms for reference change |
| Operating altitude | <= 1000 m without derating |
| Number of addresses | 1…247 for Modbus |
| Supply frequency | 50/60 Hz +/- 5 % |
| Device short name | ATV310 |
| Acceleration and deceleration ramps | Linear from 0...999.9 sSU |
| Speed range | 1…20 for asynchronous motor |
| Physical interface | 2-wire RS 485 for Modbus |
| Product or component type | Variable speed drive |
| Ambient air temperature for storage | -25…70 °C |
| Analogue input number | 1 |
| Output voltage | 380...460 V three phase |
| Continuous output current | 7.1 A heavy duty8.9 A normal duty |
| Package 2 Weight | 4.776 kg |
| Asynchronous motor control profile | Voltage/frequency ratio (V/f)Voltage/frequency ratio - Energy Saving, quadratic U/fSensorless vector control (SVC) |
| Electrical connection | Terminal, clamping capacity: 1.5...4 mm², AWG 16...AWG 12 (L1, L2, L3, PA/+, PB, U, V, W) |
| Maximum switching current | 2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: level 4 conforming to IEC 61000-4-4Electrostatic discharge immunity test - test level: level 3 conforming to IEC 61000-4-2Immunity to conducted disturbances - test level: level 3 conforming to IEC 61000-4-6Radiated radio-frequency electromagnetic field immunity test - test level: level 3 conforming to IEC 61000-4-3Voltage dips and interruptions immunity test conforming to IEC 61000-4-11Surge immunity test - test level: level 3 conforming to IEC 61000-4-5 |
| Motor slip compensation | Adjustable |
| Supply | Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and short-circuit protectionInternal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection |
| Braking torque | Up to 150 % of nominal motor torque with braking resistorUp to 70 % of nominal motor torque without braking resistor |
| Number of Units in Package 1 | 1 |
| Width | 140 mm |
| Package 1 Weight | 2.100 kg |
| Range of product | Easy Altivar 310 |
| Depth | 151 mm |
| Operating position | Vertical +/- 10 degree |
| Pollution degree | 2 conforming to IEC 61800-5-1 |
| Communication service | Read holding registers (03) 29 wordsWrite single register (06) 29 wordsWrite multiple registers (16) 27 wordsRead/write multiple registers (23) 4/4 wordsRead device identification (43) |
| Quantity per set | Set of 1 |
The ATV310HU30N4E belongs to Schneider’s Easy Altivar 310 series, built for three-phase asynchronous motors. It operates on an input supply of 380–460 V and delivers a continuous output current of 7.1 A (Heavy Duty) or 8.9 A (Normal Duty). Compact in form with dimensions of 184 mm (H) x 140 mm (W) x 151 mm (D), it supports output frequencies from 0.5 to 400 Hz and a speed range of 1–20.
This Schneider VFD supports advanced motor control profiles including sensorless vector control (SVC), quadratic energy-saving V/f, and standard V/f ratios. It comes equipped with 1 analog input, 1 analog output, and a 2-wire RS485 Modbus interface with support for up to 247 device addresses. Electrical connections support 1.5–4 mm² terminals, while the internal 5 V and 24 V supplies offer short-circuit and overload protection.
The Schneider ATV310HU30N4E is ideal for motor control applications in industries like textiles, food processing, and packaging. It efficiently controls pumps, fans, and conveyor belts, supporting both energy savings and reliable performance in 24/7 operations.
Its built-in Modbus communication makes it easy to integrate with PLCs and automation systems, reducing wiring and commissioning time. The unit's immunity to power disturbances and precise frequency control ensures optimal motor performance even in harsh environments.
Choose the ATV310HU30N4E from Schneider Electric’s trusted Easy Altivar 310 family when you need a robust, compact, and efficient Variable Frequency Drive for your industrial automation needs. Experience smooth motor starts, lower energy costs, and long-term reliability.
