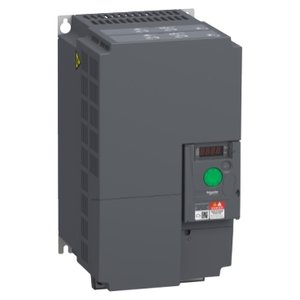

Schneider ATV310HD15N4EF Variable Speed Drive

Name: Schneider Electric ATV310HD15N4EF
Brand: Schneider
SKU: ATV310HD15N4EF
Rating: 4.7 (11 reviews)

The Schneider ATV310HD15N4EF is a reliable 15 kW VFD designed by Schneider Electric, a global leader in industrial automation and energy efficiency solutions.

Datasheet

Brand	Schneider
Product Type	VFD - Variable Frequency Drive
Model Number	ATV310HD15N4EF

Schneider ATV310HD15N4EF Variable Speed Drive – Technical Specifications

Specification	Value
Minimum switching current	5 mA at 24 V DC for logic relay
Analogue output number	1
Height	330 mm
Speed drive output frequency	0.5…400 Hz
Unit Type of Package 2	P06
Time constant	20 ms +/- 1 ms for reference change
Operating altitude	<= 1000 m without derating
Number of addresses	1…247 for Modbus
Supply frequency	50/60 Hz +/- 5 %
Device short name	ATV310
Acceleration and deceleration ramps	Linear from 0...999.9 sSU
Speed range	1…20 for asynchronous motor
Physical interface	2-wire RS 485 for Modbus
Product or component type	Variable speed drive
Ambient air temperature for storage	-25…70 °C
Analogue input number	1
Output voltage	380...460 V three phase
Continuous output current	33 A heavy duty36 A normal duty
Package 2 Weight	64.0 kg
Asynchronous motor control profile	Voltage/frequency ratio (V/f)Voltage/frequency ratio - Energy Saving, quadratic U/fSensorless vector control (SVC)
Electrical connection	Terminal, clamping capacity: 16...25 mm², AWG 4...AWG 3 (L1, L2, L3, PA/+, PB, U, V, W)
Maximum switching current	2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay
Electromagnetic compatibility	Electrical fast transient/burst immunity test - test level: level 4 conforming to IEC 61000-4-4Electrostatic discharge immunity test - test level: level 3 conforming to IEC 61000-4-2Immunity to conducted disturbances - test level: level 3 conforming to IEC 61000-4-6Radiated radio-frequency electromagnetic field immunity test - test level: level 3 conforming to IEC 61000-4-3Voltage dips and interruptions immunity test conforming to IEC 61000-4-11Surge immunity test - test level: level 3 conforming to IEC 61000-4-5
Motor slip compensation	Adjustable
Supply	Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and short-circuit protectionInternal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection
Braking torque	Up to 150 % of nominal motor torque with braking resistorUp to 70 % of nominal motor torque without braking resistor
Number of Units in Package 1	1
Width	180 mm
Package 1 Weight	8.0 kg
Range of product	Easy Altivar 310
Depth	191 mm
Operating position	Vertical +/- 10 degree
Pollution degree	2 conforming to IEC 61800-5-1
Communication service	Read holding registers (03) 29 wordsWrite single register (06) 29 wordsWrite multiple registers (16) 27 wordsRead/write multiple registers (23) 4/4 wordsRead device identification (43)
Quantity per set	Set of 1

The ATV310HD15N4EF operates on a 380–460 V three-phase power supply and delivers a continuous output current of 33 A (heavy duty) and 36 A (normal duty). It supports a speed drive frequency range of 0.5 to 400 Hz and allows linear acceleration and deceleration ramps from 0 to 999.9 seconds for smooth motor transitions. This drive offers multiple motor-control modes — V/f control, energy-saving quadratic V/f, and Sensorless Vector Control (SVC) — ensuring high precision and efficiency in load management. It integrates a 2-wire RS485 Modbus interface for seamless communication with PLC and SCADA systems. With braking torque up to 150% of nominal motor torque (using a resistor) and full compliance with IEC 61000-4 EMC standards, the Schneider ATV310HD15N4EF provides superior immunity to voltage surges, ESD, and conducted disturbances. Its compact construction (330 mm × 180 mm × 191 mm) allows vertical mounting and easy integration into control panels, making it ideal for space-limited setups.

The ATV310HD15N4EF VFD is perfectly suited for pumps, conveyors, compressors, fans, and packaging machines. In pump systems, it maintains pressure stability, reduces energy use, and minimizes water hammer. For conveyor and mixing systems, it offers smooth acceleration and precise torque management, reducing mechanical wear and downtime. In fan and HVAC applications, it adjusts motor speed dynamically to optimize airflow and energy consumption. Maintenance engineers value its simplicity, while automation professionals appreciate its communication readiness and robust overload protection. The Schneider 15 kW VFD ATV310HD15N4EF delivers consistent performance, energy savings, and reliability in every industrial environment.

To explore detailed specifications, refer to the official ATV310HD15N4EF datasheet and ATV310HD15N4EF manual. You can also check the latest ATV310HD15N4EF price and compare 15 kW VFD prices or 20 HP VFD price options from verified Schneider VFD distributors on IndMALL. This ATV310HD15N4EF model is trusted across industries for its reliability, strong braking capacity, and robust build quality — making it one of the most dependable choices in the Schneider 15 kW VFD category for heavy-duty motor control. As part of the Easy Altivar 310 series, this Variable Frequency Drive (VFD) delivers precise motor-speed control, superior torque response, and long-lasting performance. The Schneider 15 kW VFD ATV310HD15N4EF is widely used by OEMs, panel builders, and maintenance engineers seeking dependable motor-control solutions for industrial automation and manufacturing systems.
