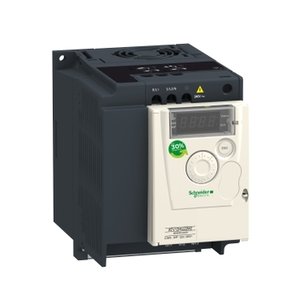

Schneider ATV12HU22M3 Variable Speed Drive
The Schneider ATV12HU22M3 Variable Speed Drive offers a 3 hp motor power, 2.2 kW motor power, Cabinet mount and 1 RJ45 connector type. Manufactured by Schneider under the Schneider Variable Speed Drive category, this model belongs to the Altistart12 Series.
| Brand | Schneider Electric |
| Product Type | Variable Speed Drive |
| Product | ATV12HU22M3 |
Schneider ATV12HU22M3 Variable Speed Drive – Technical Specifications
| Specification | Value |
|---|---|
| Ambient air temperature for storage | -25…70 °C |
| Motor power hp | 3 hp |
| Connector type | 1 RJ45 |
| Operating position | Vertical +/- 10 degree |
| Vibration resistance | 1 gn (f = 13…200 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f = 3…13 Hz) - drive unmounted on symmetrical DIN rail - conforming to IEC 60068-2-6 |
| Continuous output current | 10 A at 4 kHz |
| EMC filter | Without EMC filter |
| Ambient air temperature for operation | -10…50 °C without derating50…60 °C with current derating 2.2 % per °C |
| Switching frequency | 2...16 kHz adjustable4...16 kHz with derating factor |
| Motor power kW | 2.2 kW |
| Discrete output number | 2 |
| Nominal switching frequency | 4 kHz |
| Height | 143 mm |
| Tightening torque | 1.2 N.m |
| Maximum output frequency | 4 kHz |
| Maximum output voltage | 240 V |
| Supply frequency | 50/60 Hz +/- 5 % |
| IP degree of protection | IP20 |
| Physical interface | 2-wire RS 485 |
| Pollution degree | 2 |
| Mounting mode | Cabinet mount |
| Speed drive output frequency | 0.5…400 Hz |
| Network frequency | 50...60 Hz |
| Net weight | 1.2 kg |
| Analogue output number | 1 |
| Range of product | Altivar 12 |
| Nominal output current | 10 A |
| Product or component type | Variable speed drive |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| Power dissipation in W | Forced cooling: 85.0 W |
The Schneider Electric ATV12HU22M3 VFD is a reliable 2.2 kW (3 HP) Variable Speed Drive from the compact Altivar 12 series. Built for precision motor control in three-phase 200–240 V applications, this drive combines energy efficiency, durability, and easy integration for industrial and commercial automation systems.
The ATV12HU22M3 Schneider VFD delivers consistent performance with a nominal output current of 10 A, continuous motor power of 2.2 kW, and an adjustable switching frequency range of 2–16 kHz. It offers a wide speed drive output frequency range of 0.5–400 Hz, a nominal switching frequency of 4 kHz, and a maximum output voltage of 240 V, ensuring smooth and efficient motor control. With IP20 protection, vibration resistance conforming to IEC 60068-2-6, and a robust cabinet mount design, the unit performs reliably in demanding environments. The built-in 2-wire RS485 interface provides seamless Modbus communication for easy integration into automation networks, while its compact 1.2 kg design with a height of 143 mm makes it suitable for space-limited control panels.
Operating in ambient conditions from -10°C to 50°C without derating and up to 60°C with derating, the drive is trusted in applications such as pumps, fans, conveyors, and HVAC systems. With its durable construction, energy-efficient operation, and long-term reliability, the Schneider Electric ATV12HU22M3 VFD is a proven solution for industries requiring compact and efficient motor control.
