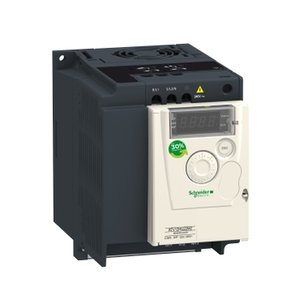

Schneider ATV12H075F1 Variable Speed Drive
The Schneider ATV12H075F1 Variable Speed Drive offers a 1 hp motor power, 0.75 kW motor power, Cabinet mount and 1 RJ45 connector type. Manufactured by Schneider under the Schneider Variable Speed Drive category, this model belongs to the Altistart12 Series.
| Brand | Schneider Electric |
| Product Type | Variable Speed Drive |
| Product | ATV12H075F1 |
Schneider ATV12H075F1 Variable Speed Drive – Technical Specifications
| Specification | Value |
|---|---|
| Ambient air temperature for storage | -25…70 °C |
| Motor power hp | 1 hp |
| Connector type | 1 RJ45 |
| Operating position | Vertical +/- 10 degree |
| Vibration resistance | 1 gn (f = 13…200 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f = 3…13 Hz) - drive unmounted on symmetrical DIN rail - conforming to IEC 60068-2-6 |
| Continuous output current | 4.2 A at 4 kHz |
| EMC filter | Without EMC filter |
| Ambient air temperature for operation | -10…50 °C without derating50…60 °C with current derating 2.2 % per °C |
| Switching frequency | 2...16 kHz adjustable4...16 kHz with derating factor |
| Motor power kW | 0.75 kW |
| Discrete output number | 2 |
| Nominal switching frequency | 4 kHz |
| Height | 142 mm |
| Tightening torque | 1.2 N.m |
| Maximum output frequency | 4 kHz |
| Maximum output voltage | 240 V |
| Supply frequency | 50/60 Hz +/- 5 % |
| IP degree of protection | IP20 |
| Physical interface | 2-wire RS 485 |
| Pollution degree | 2 |
| Mounting mode | Cabinet mount |
| Speed drive output frequency | 0.5…400 Hz |
| Network frequency | 50...60 Hz |
| Net weight | 1.3 kg |
| Analogue output number | 1 |
| Range of product | Altivar 12 |
| Nominal output current | 4.2 A |
| Product or component type | Variable speed drive |
| [Us] rated supply voltage | 100...120 V - 15...10 % |
| Power dissipation in W | Forced cooling: 48.0 W |
The Schneider Electric ATV12H075F1 is a high-performance Variable Speed Drive (VSD) designed to meet the demanding needs of single-phase motor control. With a motor power of 0.75 kW (1 hp) and a nominal output current of 4.2 A, the ATV12H075F1 is ideal for controlling industrial pumps, fans, and other equipment in commercial and industrial applications. It operates within a supply voltage range of 100–120 V and features an adjustable switching frequency from 2–16 kHz, ensuring efficient performance in varying load conditions. Whether you’re in HVAC, pumping systems, or other industrial automation sectors, the ATV12H075F1 provides precise control and energy-efficient operation.
The Schneider Electric ATV12H075F1 ensures reliable performance in harsh industrial environments with IP20 protection and operates at ambient temperatures ranging from -10 to 50°C without derating, with higher temperatures manageable with derating. Its EMC filter minimizes electromagnetic interference, promoting stable operation. This drive has a nominal output frequency of 4 kHz and a maximum output voltage of 240 V, making it a versatile solution for precise motor control. It uses a 2-wire RS 485 physical interface for easy integration into existing automation systems. The ATV12H075F1 is compact, with a height of 142 mm, and designed for cabinet mounting, fitting seamlessly into a variety of setups. For industries requiring continuous motor control and efficient energy usage, this drive delivers optimal performance with a speed range of 0.5–400 Hz and a network frequency of 50-60 Hz.
