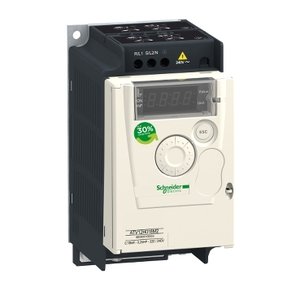

Schneider ATV12H018F1 Variable Speed Drive
The Schneider ATV12H018F1 Variable Speed Drive offers a 0.25 hp motor power, 0.18 kW motor power, Cabinet mount and 1 RJ45 connector type. Manufactured by Schneider under the Schneider Variable Speed Drive category, this model belongs to the Altistart12 Series.
| Brand | Schneider Electric |
| Product Type | Variable Speed Drive |
| Product | ATV12H018F1 |
Schneider ATV12H018F1 Variable Speed Drive – Technical Specifications
| Specification | Value |
|---|---|
| Ambient air temperature for storage | -25…70 °C |
| Motor power hp | 0.25 hp |
| Connector type | 1 RJ45 |
| Operating position | Vertical +/- 10 degree |
| Vibration resistance | 1 gn (f = 13…200 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f = 3…13 Hz) - drive unmounted on symmetrical DIN rail - conforming to IEC 60068-2-6 |
| Continuous output current | 1.4 A at 4 kHz |
| EMC filter | Without EMC filter |
| Ambient air temperature for operation | -10…40 °C without derating40…60 °C with current derating 2.2 % per °C |
| Switching frequency | 2...16 kHz adjustable4...16 kHz with derating factor |
| Motor power kW | 0.18 kW |
| Discrete output number | 2 |
| Nominal switching frequency | 4 kHz |
| Height | 143 mm |
| Tightening torque | 0.8 N.m |
| Maximum output frequency | 4 kHz |
| Maximum output voltage | 240 V |
| Supply frequency | 50/60 Hz +/- 5 % |
| IP degree of protection | IP20 |
| Physical interface | 2-wire RS 485 |
| Pollution degree | 2 |
| Mounting mode | Cabinet mount |
| Speed drive output frequency | 0.5…400 Hz |
| Network frequency | 50...60 Hz |
| Net weight | 0.7 kg |
| Analogue output number | 1 |
| Range of product | Altivar 12 |
| Nominal output current | 1.4 A |
| Product or component type | Variable speed drive |
| [Us] rated supply voltage | 100...120 V - 15...10 % |
| Power dissipation in W | Natural: 18.0 W |
The Schneider Electric ATV12H018F1 is trusted for its efficiency and robustness in diverse industrial environments. Operating within a supply voltage range of 100-120 V and offering a nominal output current of 1.4 A, it delivers consistent motor performance. The drive’s EMC filter ensures minimal electromagnetic interference, making it suitable for sensitive equipment. With a maximum output frequency of 4 kHz and a speed range of 1-20 Hz, this drive provides flexible motor control for a variety of applications. The ATV12H018F1 features IP20 protection and operates seamlessly in ambient temperatures from -10 to 40°C without derating. The 2-wire RS 485 interface enables easy integration into existing systems, making it a cost-effective and reliable solution.
