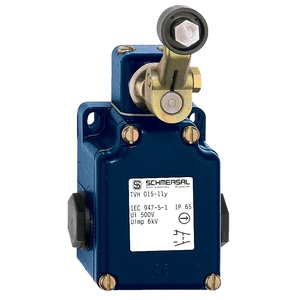

Schmersal ZVH 015-11Y Limit Switch
The Schmersal ZVH 015-11Y Limit Switch (Item No: 131055293) offers a mechanical working principle, Light-alloy diecast, paint finishhousing material, 43 mm length of sensor, IP65 degree of protection. Manufactured by Schmersal under the Schmersal Limit Switch. category, this model belongs to the Schmersal TV Series.
| Brand | Schmersal |
| Product Type | Limit Switch |
| Model Number | ZVH 015-11Y |
Schmersal ZVH 015-11Y Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Working principle | mechanical |
| Slide form | Castor |
| Housing material | Light-alloy diecast, paint finish |
| Housing coating material | painted |
| Gross weight | 410 g |
| Number of normally closed (NC) | - |
| Number of normally open (NO) | - |
| Actuating element | Roller lever |
| Roller material | Plastic |
| Actuating angle, from left of switch axis | 30 Β° |
| Actuating angle, from right of switch axis | 30 Β° |
| Contact opening | - |
| Actuating speed, minimum | 1 mm/min |
| Actuating speed, maximum | 1 m/s |
| Length of sensor | 43 mm |
| Width of sensor | 67 mm |
| Height of sensor | 133 mm |
| Width of Castor | 8.5 mm |
| Diameter of Castor | 20 mm |
| Degree of protection | IP65 |
| Ambient temperature | -30 ... +90 Β°C |
| Rated insulation voltage Ui | - |
| Thermal test current | 10 A |
| Utilisation category AC-15 | - |
| Switching element | - |
| Switching principle | - |
| Material of the contacts, electrical | Silver |
IndMALL Automation Dealing offers Medium-duty position switches ZVH 015-11Y part no: 131055293 at unbeatable prices. The Main Technical Parameters of ZVH 015-11Y, 131055293 feature Light-alloy diecast, paint finish, ensuring durability in industrial environments. The switch features a Roller lever actuating element, providing precise mechanical operation. With a gross weight of 410 g, it maintains a compact yet robust design. The connection technique supports wire cross-section, ensuring reliable electrical connections. Dimensions include a sensor length of 43 mm, width of 67 mm, and height of 133 mm. The castor width is 8.5 mm, with a diameter of 20 mm, enhancing mechanical efficiency. The unit is rated IP65, offering protection against dust and water ingress. Designed for high-voltage applications, it features a rated insulation voltage (Ui) of -, ensuring electrical safety. Take the First Step with a Quote for your requirement of Medium-duty position switches . Choose us for unparalleled pricing and support over other Dealers & Distributors.
