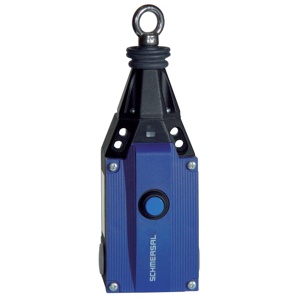

During technical comparisons, ZQ-900-02 appears alongside Schmersal Limit Switch, Schmersal Zq 900 11 N and Schmersal Door Locking Devices so engineers assess signal types, ingress protection, and ambient tolerances accurately.
Schmersal ZQ 900-02 Pull-wire Emergency Stop Switch
The Schmersal ZQ 900-02 Pull-wire Emergency Stop Switches (Item No: 131186146) offers a Metal, zinc die-cast housing material, Screw terminals M20 x 1.5, IP66, IP67 degree of protection, 6 A thermal test current. Manufactured by Schmersal under the Schmersal Pull-wire Emergency Stop Switches. category, this model belongs to the Schmersal ZQ Series.
| Brand | Schmersal |
| Product Type | Pull-wire Emergency Stop Switch |
| Model Number | ZQ 900-02 |
Schmersal ZQ 900-02 Pull-wire Emergency Stop Switch – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Metal, zinc die-cast |
| Housing coating material | painted |
| Length of the wire, maximum | 75 m |
| Actuation direction | - |
| Positive break force, minimum | - |
| Tightening torque of the fixing screws | - |
| Tightening torque of the fastening screws for the housing cover | - |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 0.75 mm² |
| Cable section, maximum | 2.5 mm² |
| Tightening torque of electrical connection, minimum | - |
| Tightening torque of electrical connection, maximum | - |
| Length | 69.7 mm |
| Width | 71.5 mm |
| Height | 220.3 mm |
| Width of the actuator | - |
| Height of the actuator | - |
| Degree of protection | IP66, IP67 |
| Ambient temperature | -25 ... +70 °C |
| Thermal test current | 6 A |
| Required rated short-circuit current | - |
| Switching element | Opener (NC) |
| Material of the contacts, electrical | Silver |
| Gross Weight | 1,400 g |
Obtain a Quote for Schmersal Safety Pull-wire Switch ZQ 900-02 part no: 131186146 at economical prices. Specifications Overview for ZQ 900-02, 131186146 reveals Metal, zinc die-cast for enhanced durability. The sensors support a maximum wire length of 75 m and use Screw terminals M20 x 1.5 termination. The cable section ranges from a minimum of 0.75 mm² to a maximum of 2.5 mm² ensuring flexibility in installation. The designed for compact spaces. Rated IP66, IP67, these sensors offer high protection against dust and water ingress, making them suitable for harsh environments. They operate reliably in ambient temperatures from -25 ... +70 °C The switching element includes Opener (NC) with Silver electrical contacts for optimal conductivity. Take the First Step with a Quote for your requirement of Schmersal Safety Pull-wire Switch. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
