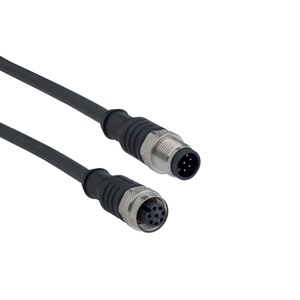

Schmersal V-SK8P-M12-S-G-5,0M-BK-2-X-A-4-69: 101217790 - M12 Connecting Cables
Technical Specifications of Schmersal M12 Connecting Cables V-SK8P-M12-S-G-5,0M-BK-2-X-A-4-69:
| Number of cable wires | 8 |
| Length of cable | 5 m |
| Connector types | Female connector, M12 |
| Design | straight |
Schmersal M12 Connecting Cables V-SK8P-M12-S-G-5,0M-BK-2-X-A-4-69 101217790 Technical Specifications
| Specification | Value |
|---|---|
| Number of cable wires | 8 |
| Tightening torque, maximum | 1 Nm |
| Length of cable | 5 m |
| Wire cross-section | 0.25 mm2 |
| Colour of the Cable mantle | Black |
| Connector types | Female connector, M12 |
| Design | straight |
| Connector coding | A |
| Connector latching | Screw locking |
| Material of the gland | Metal, CuZn, nickel-plated |
| Colour of the handle | Black |
| Connector type | Male connector, M12 |
| Connector side B - Design | straight |
| Connector side B - Connector coding | A |
| Connector side B - Connector latching | Screw locking |
| Connector side B - Material of the gland | Metal, CuZn, nickel-plated |
| Connector side B - Colour of the handle | Black |
| Thermal test current | 1.5 A |
| Connection technique - Cable diameter | 5.9 mm |
| Bending radius (fixed) | 5 x Ø-cable |
| Bending radius (repeated) | 10 x Ø-cable |
| Material of the Cable mantle | PUR |
| Material of the handle | Plastic, TPU |
| Material of the handle | Plastic, TPU |
| Degree of protection | IP65IP67IP68 |
| Ambient temperature (Connector) | -30 ... +90 °C |
| Ambient temperature (fixed) | -50 ... +90 °C |
| Ambient temperature (moved) | -30 ... +90 °C |
| Rated operating voltage | 30 VDC |
| Operating current | 2,000 mA |
| Gross weight | 240 g |
Give Us a Call for Schmersal M12 Connecting Cables V-SK8P-M12-S-G-5,0M-BK-2-X-A-4-69 Item No: 101217790 at the lowest pricing. In-depth Technical Analysis of V-SK8P-M12-S-G-5,0M-BK-2-X-A-4-69, 101217790 feature 8 individual cable wires with a wire cross-section of 0.25 mm2, ideal for efficient signal transmission. It comes with a sturdy Female connector, M12 in a straight design, equipped with Screw locking for secure connections. The cable has a total length of 5 m meters and supports a maximum tightening torque of 1 Nm, ensuring safe and firm installation. The outer mantle of the cable is Black, while the handle is Black, providing a clear color distinction for easy identification. The connector gland is made of Metal, CuZn, nickel-plated, offering excellent durability and corrosion resistance in industrial environments. The overall gross weight of the cable is 240 g making it lightweight yet robust. Elevate Your Project with a Quote for your requirement of Schmersal M12 Connecting Cables V-SK8P-M12-S-G-5,0M-BK-2-X-A-4-69. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
