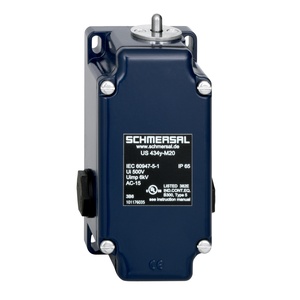

Schmersal US 434Y-4OE Limit Switch
The Schmersal US 434Y-4OE Limit Switch (Item No: 101055012) offers a mechanical working principle, 10,000,000 Operationsmechanical life, minimum, Screw terminals M20 x 1.5 termination, IP65 degree of protection. Manufactured by Schmersal under the Schmersal Limit Switch. category, this model belongs to the Schmersal TV Series.
| Brand | Schmersal |
| Product Type | Limit Switch |
| Model Number | US 434Y-4OE |
Schmersal US 434Y-4OE Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Working principle | mechanical |
| Slide form | Sphere |
| Housing material | Light alloy die-casting |
| Housing coating material | painted |
| Gross weight | 442 g |
| Number of normally closed (NC) | 4 |
| Number of normally open (NO) | - |
| Actuating element | Plunger |
| Roller material | - |
| Mechanical life, minimum | 10,000,000 Operations |
| Actuating angle, from left of switch axis | - |
| Actuating angle, from right of switch axis | - |
| Contact opening | 2 x 1.5 mm |
| Actuating speed, minimum | 1 mm/min |
| Actuating speed, maximum | 1 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, maximum | 2.5 mmΒ² |
| Connection technique - Wire cross-section | 13 AWG |
| Length of sensor | 50 mm |
| Width of sensor | 62 mm |
| Height of sensor | 138 mm |
| Width of Castor | - |
| Diameter of Castor | - |
| Degree of protection | IP65 |
| Ambient temperature | -20 ... +60 Β°C |
| Rated insulation voltage Ui | 500 V |
| Thermal test current | 16 A |
| Utilisation category AC-15 | - |
| Switching element | Opener (NC) |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |
Talk to Our Engineer for Medium-duty position switches US 434Y-4OE part no: 101055012 with exclusive offers. Core System Specifications of US 434Y-4OE, 101055012 are Light alloy die-casting, ensuring durability in industrial environments. The switch features a Plunger actuating element, providing precise mechanical operation. With a gross weight of 442 g, it maintains a compact yet robust design. The connection technique supports 13 AWG wire cross-section, ensuring reliable electrical connections. Dimensions include a sensor length of 50 mm, width of 62 mm, and height of 138 mm. The Switching element is Opener (NC), with a Switching principle of Slow action, enhancing mechanical efficiency. The unit is rated IP65, offering protection against dust and water ingress. Designed for high-voltage applications, it features a rated insulation voltage (Ui) of 500 V, ensuring electrical safety. Don't Miss Out on a Quote for your requirement of Medium-duty position switches . Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
