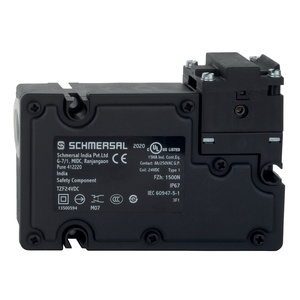

Schmersal TZF.NEM.CHI24VDC Solenoid Interlocks
The Schmersal TZF.NEM.CHI24VDC Solenoid Interlocks (Item No: 131027524) offers a electromechanical working principle, Screw terminalstermination, IP65IP67 degree of protection, 250 VAC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal TZ Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | TZF.NEM.CHI24VDC |
Schmersal TZF.NEM.CHI24VDC Solenoid Interlocks β Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Working principle | electromechanical |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 520 g |
| Holding force FZhin accordance with EN ISO 14119 | 1,500 N |
| Latching force | 20 N |
| Positive break travel | 3.5 mm |
| Positive break force per NC contact, minimum | 20 N |
| Positive break force, minimum | 20 N |
| Actuating speed, maximum | 0.3 m/s |
| Mounting | Screws |
| Type of the fixing screws | 3x M6 |
| Tightening torque of the fastening screws for the housing cover, minimum | 0.8 Nm |
| Tightening torque of the fastening screws for the housing cover, maximum | 0.8 Nm |
| Termination | Screw terminals |
| Cable section, minimum | 1 x 0.5 mmΒ² |
| Cable section, maximum | 1 x 1.5 mmΒ² |
| Length of sensor | 41 mm |
| Width of sensor | 129 mm |
| Height of sensor | 92.5 mm |
| Degree of protection | IP65IP67 |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Thermal test current | 4 A |
| Rated control voltage | 24 VDC |
| Required rated short-circuit current | 1,000 A |
| Electrical power consumption, maximum | 8.5 W |
| Switching principle | Slow action |
| Maximum switching frequency | 1,200 /h |
| Material of the contacts, electrical | Silver |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | 5 ms |
| Test pulse interval, minimum | 50 ms |
| Voltage, Utilisation category AC-15 | 230 VAC |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Power to unlock | Yes |
| Cable entry | 1 x M20 x 1,5 |
Mail Us for your needs in SchmersalSolenoid interlocks TZF.NEM.CHI24VDC part no: 131027524 with budget-friendly prices. The Main Technical Parameters of TZF.NEM.CHI24VDC, 131027524 include electromechanical safety switch, designed for durability and reliability in industrial environments. The housing is made of Glass-fibre, reinforced thermoplastic, ensuring a lightweight yet robust construction with a gross weight of 520 g. It features an Screw terminals system, facilitating easy installation. With dimensions of 41 mm in length, 129 mm in width, and 92.5 mm in height, it is compact yet highly efficient. The IP65IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 250 VAC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 2.5 kV, providing high surge protection. Customize Your Experience with a Quote for your requirement of Solenoid interlocks. Experience the difference with our competitive pricing and superior support over other Suppliers.
