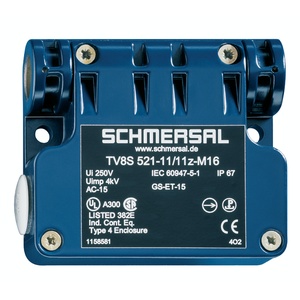

Schmersal TV8S 521-11/11Z Safety Switch
The Schmersal TV8S 521-11/11Z Position Switch (Item No: 101138421) offers a Screw terminals M20 x 1.5 termination, IP67 degree of protection, 250 VAC rated insulation voltage Ui, NO contact, NC contact switching element. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TV8S Series.
| Brand | Schmersal |
| Product Type | Safety switch |
| Model Number | TV8S 521-11/11Z |
Schmersal TV8S 521-11/11Z Safety Switch β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Aluminium |
| Housing coating material | painted |
| Gross weight | 274 g |
| Number of auxiliary contacts | 2 |
| Number of safety contacts | 1 |
| Positive break angle | 14 Β° |
| Mounting hole for the Shaft | 10 mm |
| Positive break torque | 8 Nm |
| Cable entry | 2 x M16 x 1.5 |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 1 x 0.75 mmΒ² |
| Cable section, maximum | 1 x 1.5 mmΒ² |
| Connection technique - Note | All indications including the conductor ferrules. |
| Length of sensor | 27 mm |
| Width of sensor | 92 mm |
| Height of sensor | 81.5 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 Β°C |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 10 A |
| Utilisation category AC-15 | 4 A |
| Utilisation category DC-13 | 1 A |
| Switching element | NO contact, NC contact |
| Switching principle | Slow action |
| Maximum switching frequency | 1,000 /h |
| Material of the contacts, electrical | Silver |
IndMALL Automation Dealing offers Schmersal Safety switch for hinged guards TV8S 521-11/11Z Item No: 101138421 at unbeatable prices. The Main Technical Parameters of TV8S 521-11/11Z, 101138421 feature Aluminium housing with a painted coating, providing durability and corrosion resistance. It is designed with a positive break torque of 8 Nm, ensuring reliable disengagement when the guard is opened. Termination is handled via an Screw terminals M20 x 1.5 entry for secure wiring. The compact sensor has dimensions of 27 mm in length, 92 mm in width, and 81.5 mm in height. Rated IP67, it offers superior protection against dust and water. It supports a rated insulation voltage of 250 VAC and a thermal test current of 10 A. The switching element includes NO contact, NC contact with a Slow action switching principle, capable of up to 1,000 /h. Electrical contacts are made of high-quality Silver. The gross weight is 274 g. Take the First Step with a Quote for your requirement of Safety switch for hinged guards TV8S 521-11/11Z. Choose us for unparalleled pricing and support over other Dealers & Distributors.
