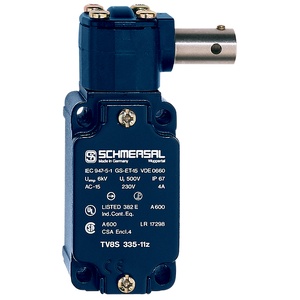

Schmersal TV8S 335-11Z-M20 Safety Switch
The Schmersal TV8S 335-11Z-M20 Position Switch (Item No: 151155141) offers a Screw terminals M20 x 1.5 termination, IP67 degree of protection, 500 V rated insulation voltage Ui, Opener (NC) switching element. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TV8S Series.
| Brand | Schmersal |
| Product Type | Safety switch |
| Model Number | TV8S 335-11Z-M20 |
Schmersal TV8S 335-11Z-M20 Safety Switch – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Light alloy die-casting |
| Housing coating material | painted |
| Gross weight | 265 g |
| Positive break angle | 7 ° |
| Positive break torque | 0.6 Nm |
| Termination | Screw terminals M20 x 1.5 |
| Length of sensor | 65.3 mm |
| Width of sensor | 40.5 mm |
| Height of sensor | 107 mm |
| Degree of protection | IP67 |
| Ambient temperature | - |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Thermal test current | 10 A |
| Utilisation category AC-15 | 4 A |
| Utilisation category DC-13 | 4 A |
| Switching element | Opener (NC) |
| Switching principle | Slow action |
| Maximum switching frequency | 1,000 /h |
| Material of the contacts, electrical | Silver |
| Actuating element | Other |
| Connector typ | Female connector |
Call us for Schmersal Safety switch for hinged guards TV8S 335-11Z-M20 Item No: 151155141 at the best rates. Technical Attributes of TV8S 335-11Z-M20, 151155141 are Light alloy die-casting housing with a painted coating, providing durability and corrosion resistance. It is designed with a positive break torque of 0.6 Nm, ensuring reliable disengagement when the guard is opened. Termination is handled via an Screw terminals M20 x 1.5 entry for secure wiring. The compact sensor has dimensions of 65.3 mm in length, 40.5 mm in width, and 107 mm in height. Rated IP67, it offers superior protection against dust and water. It supports a rated insulation voltage of 500 V and a thermal test current of 10 A. The switching element includes Opener (NC) with a Slow action switching principle, capable of up to 1,000 /h. Electrical contacts are made of high-quality Silver. The gross weight is 265 g. Unlock Exclusive Pricing with a Quote for your requirement of Safety switch for hinged guards TV8S 335-11Z-M20. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
