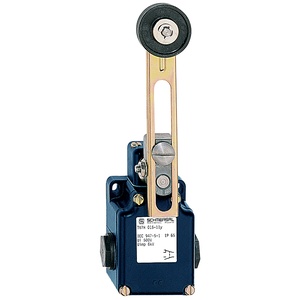

Schmersal TV7H 015-02Y-H Limit Switch
The Schmersal TV7H 015-02Y-H Limit Switch (Item No: 131215020) offers a mechanical working principle, 5,000,000 Operationsmechanical life, minimum, Screw terminals M20 x 1.5 termination, IP65 degree of protection. Manufactured by Schmersal under the Schmersal Limit Switch. category, this model belongs to the Schmersal TV Series.
| Brand | Schmersal |
| Product Type | Limit Switch |
| Model Number | TV7H 015-02Y-H |
Schmersal TV7H 015-02Y-H Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Working principle | mechanical |
| Slide form | Castor |
| Housing material | Light-alloy diecast, paint finish |
| Housing coating material | painted |
| Gross weight | 497 g |
| Actuating element | Roller lever |
| Roller material | Plastic |
| Mechanical life, minimum | 5,000,000 Operations |
| Actuating angle, from left of switch axis | 30 ° |
| Actuating angle, from right of switch axis | 30 ° |
| Contact opening | 2 x 2.5 mm |
| Actuating speed, minimum | 1 mm/min |
| Actuating speed, maximum | 3 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, maximum | 2.5 mm² |
| Connection technique - Wire cross-section | 13 AWG |
| Length of sensor | 43 mm |
| Width of sensor | 67 mm |
| Height of sensor | 228 mm |
| Width of Castor | 9 mm |
| Diameter of Castor | 36 mm |
| Degree of protection | IP65 |
| Ambient temperature | -30 ... +90 °C |
| Thermal test current | 10 A |
| Utilisation category AC-15 | 4 A |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |
Get A Quote for Medium-duty position switches TV7H 015-02Y-H part no: 131215020 at the best price. Here are the brief Technical Specifications of TV7H 015-02Y-H, 131215020 are Light-alloy diecast, paint finish, ensuring durability in industrial environments. The switch features a Roller lever actuating element, providing precise mechanical operation. With a gross weight of 497 g, it maintains a compact yet robust design. The connection technique supports 13 AWG wire cross-section, ensuring reliable electrical connections. Dimensions include a sensor length of 43 mm, width of 67 mm, and height of 228 mm. The castor width is 9 mm, with a diameter of 36 mm, enhancing mechanical efficiency. The unit is rated IP65, offering protection against dust and water ingress. Designed for high-voltage applications, it features a Switching principle of Slow action, ensuring electrical safety. It's Time to get a Quote for your requirement of Medium-duty position switches . We guarantee unmatched pricing and unparalleled support compared to other Distributors.
