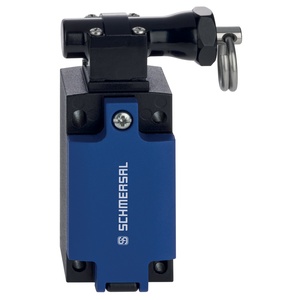

Schmersal TQ315AR-02 Pull-wire Switches
The Schmersal TQ315AR-02 Pull-wire Switches (Item No: 103044922) offers a 10,000,000 Operations mechanical life, minimum, IP66IP67 degree of protection, 300 VAC rated insulation voltage Ui, 2 NC contact switching element. Manufactured by Schmersal under the Schmersal Pull-wire Switches. category, this model belongs to the Schmersal TQ Series.
| Brand | Schmersal |
| Product Type | Pull-wire switch |
| Model Number | TQ315AR-02 |
Schmersal TQ315AR-02 Pull-wire Switches – Technical Specifications
| Specification | Value |
|---|---|
| Housing construction form | Norm construction design |
| Actuator type to EN 50041 | B |
| Housing material | Metal, zinc die cast |
| Housing coating material | painted |
| Length of the wire, maximum | 25 m |
| Gross weight | 461 g |
| Mechanical life, minimum | 10,000,000 Operations |
| Actuation direction | right |
| Positive break force, minimum | 50 N |
| Tightening torque of the fixing screws | 2 Nm |
| Tightening torque of the fastening screws for the housing cover | 2.6 Nm |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 0.34 mm² |
| Cable section, maximum | 1.5 mm² |
| Tightening torque of electrical connection, minimum | 0.6 Nm |
| Tightening torque of electrical connection, maximum | 0.8 Nm |
| Length | 32.4 mm |
| Width | 40 mm |
| Height | 93.4 mm |
| Width of the actuator | 91 mm |
| Height of the actuator | 21.4 mm |
| Degree of protection | IP66IP67 |
| Ambient temperature | 30 ... +80 °C |
| Protection class | I |
| Rated insulation voltage Ui | 300 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Degree of pollution | 3 |
| Thermal test current | 10:00 AM |
| Required rated short circuit current | 400 A |
| Utilisation category AC 15 | 3:00 AM |
| Utilisation category DC 13 | 3:00 AM |
| Switching element | 2 NC contact |
| Material of the contacts, electrical | Silver |
Get A Quote for Schmersal Pull-wire Switches TQ315AR-02 Item No: 103044922 at the best price. Here are the brief Technical Specifications of TQ315AR-02, 103044922 are Metal, zinc die cast housing, this switch ensures durability even in harsh industrial environments. It boasts a mechanical life of over 10,000,000 Operations, making it ideal for long-term use in safety-critical systems. Termination is via Screw terminals M20 x 1.5 entry, allowing for easy and secure wiring. The rated insulation voltage is 300 VAC, with a rated impulse withstand voltage of 4 kV, ensuring safe electrical performance. The switching element includes 2 NC contact for reliable signal handling. Weighing 461 g, this switch maintains a compact and sturdy form. It is protected with IP66IP67 ratings, offering excellent resistance to dust and water ingress. It's Time to get a Quote for your requirement of 30 ... +80 °C. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
