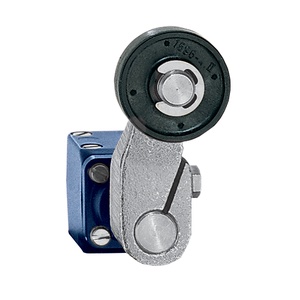

Schmersal TL 461-31Y Position Switch
The Schmersal TL 461-31Y Position Switch (Item No: ) offers a Grey cast iron, galvanised housing material, 10,000,000 Operations mechanical life, minimum, IP65 degree of protection, -30 ... +90 °C ambient temperature. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TL Series.
| Brand | Schmersal |
| Product Type | Position switch |
| Model Number | TL 461-31Y |
Schmersal Position Switch – Technical Specifications
| Specification | Value |
|---|---|
| mechanical | mechanical |
| Slide form | Castor |
| Housing material | Grey cast iron, galvanised |
| Housing coating material | painted |
| Gross weight | 2,295 g |
| Number of normally closed (NC) | 1 |
| open (NO) | 3 |
| Actuating element | Roller lever |
| Roller material | Plastic |
| Mechanical life, minimum | 10,000,000 Operations |
| Actuating angle, from left of switch axis | 30 ° |
| Actuating angle, from right of switch axis | 30 ° |
| Contact opening | max. 2 x 6 mm |
| Actuating speed, minimum | 1 mm/min |
| Actuating speed, maximum | 3 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 1.5 mm² |
| Cable section, maximum | 2.5 mm² |
| Wire cross-section | 13 AWG |
| Length of sensor | 64 mm |
| Width of sensor | 118 mm |
| Height of sensor | 248 mm |
| Width of Castor | 9 mm |
| Diameter of Castor | 36 mm |
| Degree of protection | IP65 |
| Ambient temperature | -30 ... +90 °C |
| Rated insulation voltage Ui | 400 V |
| Thermal test current | 16 A |
| Switching element | NO contact / NC contact |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |
Get A Quote for Schmersal Position Switch TL 461-31Y part no: 101059456 at the best price. Here are the brief Technical Specifications of TL 461-31Y, 101059456 are the housing is made of Grey cast iron, galvanised, ensuring strength and corrosion resistance. Featuring a Roller lever actuating element, this switch guarantees precise mechanical operation with a minimum mechanical life of 10,000,000 Operations operations. The termination is via Screw terminals M20 x 1.5, supporting a maximum cable section 2.5 mm² for secure connections. The sensor measures 64 mm in length, 118 mm in width, and 248 mm in height, making it ideal for industrial use. It carries an IP65 protection rating, safeguarding it against dust and water exposure. The switch operates in ambient temperatures ranging from -30 ... +90 °C, ensuring reliability in extreme conditions. It supports a rated insulation voltage (Ui) of 400 V and features NO contact / NC contact with an Slow action switching principle. It's Time to get a Quote for your requirement of Position Switch. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
