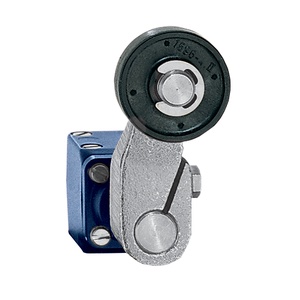

Schmersal TL 452-02Y Position Switch
The Schmersal TL 452-02Y Position Switch (Item No: ) offers a Grey cast iron, galvanised housing material, 10,000,000 Operations mechanical life, minimum, IP65 degree of protection, -30 ... +90 °C ambient temperature. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TL Series.
| Brand | Schmersal |
| Product Type | Position switch |
| Model Number | TL 452-02Y |
Schmersal Position Switch – Technical Specifications
| Specification | Value |
|---|---|
| mechanical | mechanical |
| Slide form | Castor |
| Housing material | Grey cast iron, galvanised |
| Housing coating material | painted |
| Gross weight | 1,970 g |
| Number of normally closed (NC) | 2 |
| open (NO) | - |
| Actuating element | Roller lever |
| Roller material | Plastic |
| Mechanical life, minimum | 10,000,000 Operations |
| Actuating angle, from left of switch axis | 30 ° |
| Actuating angle, from right of switch axis | 30 ° |
| Contact opening | 2 x 6 mm |
| Actuating speed, minimum | 1 mm/min |
| Actuating speed, maximum | 3 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 1.5 mm² |
| Cable section, maximum | 2.5 mm² |
| Wire cross-section | 13 AWG |
| Length of sensor | 64 mm |
| Width of sensor | 118 mm |
| Height of sensor | 220 mm |
| Width of Castor | 9 mm |
| Diameter of Castor | 36 mm |
| Degree of protection | IP65 |
| Ambient temperature | -30 ... +90 °C |
| Rated insulation voltage Ui | 400 V |
| Thermal test current | 16 A |
| Switching element | Opener (NC) |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |
Give Us a Call for Schmersal Position Switch TL 452-02Y part no: 101059396 at the lowest pricing. In-depth Technical Analysis of TL 452-02Y, 101059396 feature the housing is made of Grey cast iron, galvanised, ensuring strength and corrosion resistance. Featuring a Roller lever actuating element, this switch guarantees precise mechanical operation with a minimum mechanical life of 10,000,000 Operations operations. The termination is via Screw terminals M20 x 1.5, supporting a maximum cable section 2.5 mm² for secure connections. The sensor measures 64 mm in length, 118 mm in width, and 220 mm in height, making it ideal for industrial use. It carries an IP65 protection rating, safeguarding it against dust and water exposure. The switch operates in ambient temperatures ranging from -30 ... +90 °C, ensuring reliability in extreme conditions. It supports a rated insulation voltage (Ui) of 400 V and features Opener (NC) with an Slow action switching principle. Elevate Your Project with a Quote for your requirement of Position Switch. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
