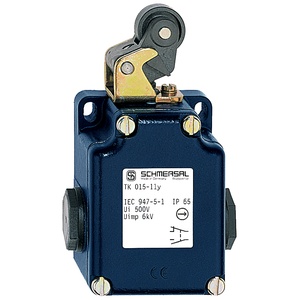

Schmersal TK 015-11Y-M20 Position Switch
The Schmersal TK 015-11Y-M20 Position Switch (Item No: ) offers a Light-alloy diecast, paint finish housing material, 5,000,000 Operations mechanical life, minimum, IP65 degree of protection, -30 ... +90 °C ambient temperature. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TL Series.
| Brand | Schmersal |
| Product Type | Position switch |
| Model Number | TK 015-11Y-M20 |
Schmersal Position Switch – Technical Specifications
| Specification | Value |
|---|---|
| mechanical | mechanical |
| Slide form | Castor |
| Housing material | Light-alloy diecast, paint finish |
| Housing coating material | painted |
| Gross weight | 260 g |
| Number of normally closed (NC) | 1 |
| open (NO) | 1 |
| Actuating element | Offset roller lever |
| Roller material | Plastic |
| Mechanical life, minimum | 5,000,000 Operations |
| Actuating angle, from left of switch axis | 45 ° |
| Actuating angle, from right of switch axis | 30 ° |
| Contact opening | 2 x 2.5 mm |
| Actuating speed, minimum | 1 mm/min |
| Actuating speed, maximum | 0.5 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | - |
| Cable section, maximum | 2.5 mm² |
| Wire cross-section | 13 AWG |
| Length of sensor | 43 mm |
| Width of sensor | 67 mm |
| Height of sensor | 113 mm |
| Width of Castor | 8.5 mm |
| Diameter of Castor | 20 mm |
| Degree of protection | IP65 |
| Ambient temperature | -30 ... +90 °C |
| Rated insulation voltage Ui | 500 V |
| Thermal test current | 10 A |
| Switching element | NO contact, NC contact |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |
IndMALL Automation Dealing offers Schmersal Position Switch TK 015-11Y-M20 part no: 101152189 at unbeatable prices. The Main Technical Parameters of TK 015-11Y-M20, 101152189 features the housing is made of Light-alloy diecast, paint finish, ensuring strength and corrosion resistance. Featuring a Offset roller lever actuating element, this switch guarantees precise mechanical operation with a minimum mechanical life of 5,000,000 Operations operations. The termination is via Screw terminals M20 x 1.5, supporting a maximum cable section 2.5 mm² for secure connections. The sensor measures 43 mm in length, 67 mm in width, and 113 mm in height, making it ideal for industrial use. It carries an IP65 protection rating, safeguarding it against dust and water exposure. The switch operates in ambient temperatures ranging from -30 ... +90 °C, ensuring reliability in extreme conditions. It supports a rated insulation voltage (Ui) of 500 V and features NO contact, NC contact with an Slow action switching principle. Take the First Step with a Quote for your requirement of Position Switch. Choose us for unparalleled pricing and support over other Dealers & Distributors.
