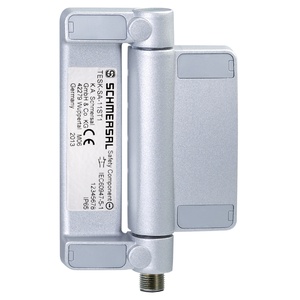

Schmersal TESK-SA-11ST1 Safety Switch
The Schmersal TESK-SA-11ST1 Safety Switch (Item No: 103005743) offers a Connector M12 termination, IP65degree of protection, 60 V rated insulation voltage Ui, NO contact, NC contact switching element. Manufactured by Schmersal under the Schmersal Safety Switch. category, this model belongs to the Schmersal TE Series.
| Brand | Schmersal |
| Product Type | Safety Switch |
| Model Number | TESK-SA-11ST1 |
Schmersal TESK-SA-11ST1 Safety Switch – Technical Specifications
| Specification | Value |
|---|---|
| Gross weight | 250 g |
| Housing material | Metal, zinc die-cast |
| Number of safety contacts | 1 |
| Standards | BG-GS-ET-15EN ISO 13849-1EN IEC 60947-5-1 |
| Mission time | 20 Year(s) |
| Mechanical life, minimum | 1,000,000 Operations |
| Termination | Connector M12 |
| Cable section, minimum | 0.5 mm² |
| Cable section, maximum | 1 mm² |
| Length of sensor | 20 mm |
| Width of sensor | 78 mm |
| Height of sensor | 116 mm |
| Degree of protection | IP65 |
| Ambient temperature | -25 ... +65 °C |
| Rated insulation voltage Ui | 60 V |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Thermal test current | 2.5 A |
| Utilisation category AC-15 | 2 A |
| Switching element | NO contact, NC contact |
| Switching principle | Slow action |
| Maximum switching frequency | 1,200 /h |
| Material of the contacts, electrical | Silver-nickel alloy 10 |
| Number of auxiliary contacts | 1 |
| Colour of the housing | Silver |
Call us for Schmersal Hinge safety switch TESK-SA-11ST1 Item No: 103005743 at the best rates. Technical Attributes of TESK-SA-11ST1, 103005743 are Connector M12 cable entry, supporting cable sections from 0.5 mm² to 1 mm². The sensor has a length of 20 mm, width of 78 mm, and height of 116 mm, designed to fit seamlessly into industrial hinge systems. With an IP65 degree of protection, it resists dust and low-pressure water, making it ideal for harsh environments. It operates in ambient temperatures from -25 ... +65 °C. Electrical ratings include a rated insulation voltage (Ui) of 60 V and a rated impulse withstand voltage (Uimp) of 0.8 kV. The switch supports a thermal test current of 2.5 A and a utilization category of AC-15 at 2 A. It uses an NO contact, NC contact switching element with an Slow action switching principle. Unlock Exclusive Pricing with a Quote for your requirement of Hinge safety switch TESK-SA-11ST1. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
