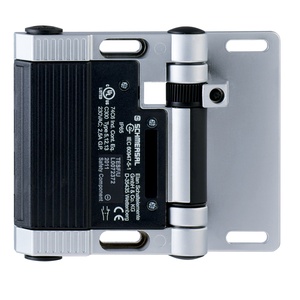

Schmersal TESF/S/180 Safety Switch
The Schmersal TESF/S/180 Safety Switch (Item No: 101182705) offers a 2 x Screw terminals M16 x 1.5 termination, IP65degree of protection, 250 VAC rated insulation voltage Ui, NO contact, NC contact switching element. Manufactured by Schmersal under the Schmersal Safety Switch. category, this model belongs to the Schmersal TE Series.
| Brand | Schmersal |
| Product Type | Safety Switch |
| Model Number | TESF/S/180 |
Schmersal TESF/S/180 Safety Switch – Technical Specifications
| Specification | Value |
|---|---|
| Gross weight | 616 g |
| Standard | BG-GS-ET-15EN IEC 60947-5-1 |
| Housing material | Metal, zinc die-cast |
| Number of safety contacts | 2 |
| Standards | EN ISO 13849-1 |
| Mission time | 20 Year(s) |
| Mechanical life, minimum | 1,000,000 Operations |
| Positive break angle | 10 ° |
| Termination | 2 x Screw terminals M16 x 1.5 |
| Cable section, minimum | 0.5 mm² |
| Cable section, maximum | 1 mm² |
| Length of sensor | 21.5 mm |
| Width of sensor | 141 mm |
| Height of sensor | 115 mm |
| Degree of protection | IP65 |
| Ambient temperature | -25 ... +65 °C |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Thermal test current | 2.5 A |
| Utilisation category AC-15 | 2 A |
| Switching element | NO contact, NC contact |
| Switching principle | Slow action |
| Maximum switching frequency | 1,200 /h |
| Material of the contacts, electrical | Silver-nickel alloy 10 |
| Number of auxiliary contacts | 2 |
| Colour of the housing | Black |
Ask for the Pricing of Schmersal Hinge safety switch TESF/S/180 Item No: 101182705 at unbeatable prices. Detailed Specifications of TESF/S/180, 101182705 feature 2 x Screw terminals M16 x 1.5 cable entry, supporting cable sections from 0.5 mm² to 1 mm². The sensor has a length of 21.5 mm, width of 141 mm, and height of 115 mm, designed to fit seamlessly into industrial hinge systems. With an IP65 degree of protection, it resists dust and low-pressure water, making it ideal for harsh environments. It operates in ambient temperatures from -25 ... +65 °C. Electrical ratings include a rated insulation voltage (Ui) of 250 VAC and a rated impulse withstand voltage (Uimp) of 2.5 kV. The switch supports a thermal test current of 2.5 A and a utilization category of AC-15 at 2 A. It uses an NO contact, NC contact switching element with an Slow action switching principle. Now's the Time to Secure a Quote for your requirement of Hinge safety switch TESF/S/180. We're committed to offering more favorable pricing and more responsive support than other Traders.
