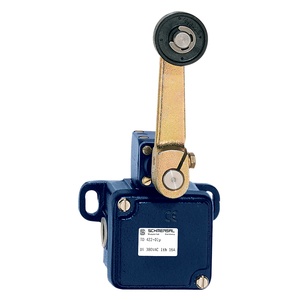

Schmersal TD 422-01y-1090/2512 Position Switch
The Schmersal TD 422-01y-1090/2512 Position Switch (Item No: ) offers a Grey cast iron, galvanised housing material, 10,000,000 Operations mechanical life, minimum, IP65 degree of protection, -30 ... +90 Β°C ambient temperature. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TL Series.
| Brand | Schmersal |
| Product Type | Position switch |
| Model Number | TD 422-01y-1090/2512 |
Schmersal Position Switch β Technical Specifications
| Specification | Value |
|---|---|
| mechanical | mechanical |
| Slide form | Castor |
| Housing material | Grey cast iron, galvanised |
| Housing coating material | painted |
| Gross weight | 1,480 g |
| Number of normally closed (NC) | 1 |
| open (NO) | - |
| Actuating element | Roller lever |
| Roller material | Plastic |
| Mechanical life, minimum | 10,000,000 Operations |
| Actuating angle, from left of switch axis | 30 Β° |
| Actuating angle, from right of switch axis | 30 Β° |
| Contact opening | 2 x 6 mm |
| Actuating speed, minimum | 1 mm/min |
| Actuating speed, maximum | 3 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 1.5 mmΒ² |
| Cable section, maximum | 2.5 mmΒ² |
| Wire cross-section | 13 AWG |
| Length of sensor | 63 mm |
| Width of sensor | 106 mm |
| Height of sensor | 209 mm |
| Width of Castor | 9 mm |
| Diameter of Castor | 36 mm |
| Degree of protection | IP65 |
| Ambient temperature | -30 ... +90 Β°C |
| Rated insulation voltage Ui | 400 V |
| Thermal test current | 16 A |
| Switching element | Opener (NC) |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |
Please speak to our Technical Engineer for Schmersal Position Switch TD 422-01y-1090/2512 part no: 151180784 at attractive prices. Technical Specs Summary of TD 422-01y-1090/2512, 151180784 includes the housing is made of Grey cast iron, galvanised, ensuring strength and corrosion resistance. Featuring a Roller lever actuating element, this switch guarantees precise mechanical operation with a minimum mechanical life of 10,000,000 Operations operations. The termination is via Screw terminals M20 x 1.5, supporting a maximum cable section 2.5 mmΒ² for secure connections. The sensor measures 63 mm in length, 106 mm in width, and 209 mm in height, making it ideal for industrial use. It carries an IP65 protection rating, safeguarding it against dust and water exposure. The switch operates in ambient temperatures ranging from -30 ... +90 Β°C, ensuring reliability in extreme conditions. It supports a rated insulation voltage (Ui) of 400 V and features Opener (NC) with an Slow action switching principle. Match Your Needs with a Quote for your requirement of Position Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
