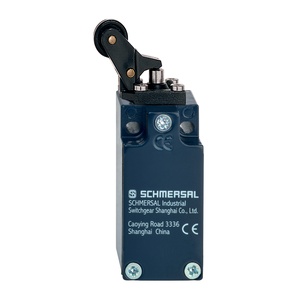

Schmersal T3K 235-02Z-M20 Position Switch
The Schmersal T3K 235-02Z-M20 Position Switch (Item No: ) offers a Metal, zinc die-cast housing material, 20,000,000 Operations mechanical life, minimum, IP65IP67 degree of protection, -30 ... +80 °C ambient temperature. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TL Series.
| Brand | Schmersal |
| Product Type | Position switch |
| Model Number | T3K 235-02Z-M20 |
Schmersal Position Switch – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Metal, zinc die-cast |
| Gross weight | 154 g |
| Number of normally closed (NC) | - |
| open (NO) | - |
| Actuating element | Angle roller lever |
| Roller material | - |
| Mechanical life, minimum | 20,000,000 Operations |
| Actuating angle, from left of switch axis | - |
| Actuating angle, from right of switch axis | - |
| Contact opening | - |
| Actuating speed, minimum | 160 mm/min |
| Actuating speed, maximum | 1 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 0.75 mm² |
| Cable section, maximum | 2.5 mm² |
| Wire cross-section | - |
| Length of sensor | 30 mm |
| Width of sensor | 35 mm |
| Height of sensor | 93.5 mm |
| Width of Castor | - |
| Diameter of Castor | - |
| Degree of protection | IP65IP67 |
| Ambient temperature | -30 ... +80 °C |
| Rated insulation voltage Ui | 500 V |
| Thermal test current | 10 A |
| Switching element | Opener (NC) |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |
| Required rated short-circuit current | 1,000 A |
| Maximum switching frequency | 5,000 /h |
| Mission time | 20 Year(s) |
Obtain a Quote for Schmersal Position Switch T3K 235-02Z-M20 part no: 151165319 at economical prices. Specifications Overview for T3K 235-02Z-M20, 151165319 reveals the housing is made of Metal, zinc die-cast, ensuring strength and corrosion resistance. Featuring a Angle roller lever actuating element, this switch guarantees precise mechanical operation with a minimum mechanical life of 20,000,000 Operations operations. The termination is via Screw terminals M20 x 1.5, supporting a maximum cable section 2.5 mm² for secure connections. The sensor measures 30 mm in length, 35 mm in width, and 93.5 mm in height, making it ideal for industrial use. It carries an IP65IP67 protection rating, safeguarding it against dust and water exposure. The switch operates in ambient temperatures ranging from -30 ... +80 °C, ensuring reliability in extreme conditions. It supports a rated insulation voltage (Ui) of 500 V and features Opener (NC) with an Slow action switching principle. Take the First Step with a Quote for your requirement of Position Switch. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
