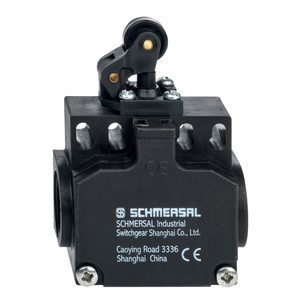

Schmersal T1R 256-02Z Position Switch
The Schmersal T1R 256-02Z Position Switch (Item No: ) offers a Plastic, glass-fibre-reinforced housing material, 20,000,000 Operations mechanical life, minimum, IP65IP67 degree of protection, -30 ... +80 °C ambient temperature. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TL Series.
| Brand | Schmersal |
| Product Type | Position switch |
| Model Number | T1R 256-02Z |
Schmersal Position Switch – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Plastic, glass-fibre-reinforced |
| Gross weight | 85 g |
| Number of normally closed (NC) | - |
| open (NO) | - |
| Actuating element | Offset roller lever |
| Roller material | - |
| Mechanical life, minimum | 20,000,000 Operations |
| Actuating angle, from left of switch axis | - |
| Actuating angle, from right of switch axis | - |
| Contact opening | - |
| Actuating speed, minimum | 160 mm/min |
| Actuating speed, maximum | 1 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 0.75 mm² |
| Cable section, maximum | 2.5 mm² |
| Wire cross-section | - |
| Length of sensor | 31 mm |
| Width of sensor | 58 mm |
| Height of sensor | 78.5 mm |
| Width of Castor | - |
| Diameter of Castor | - |
| Degree of protection | IP65IP67 |
| Ambient temperature | -30 ... +80 °C |
| Rated insulation voltage Ui | 500 V |
| Thermal test current | 10 A |
| Switching element | Opener (NC) |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |
| Required rated short-circuit current | 1,000 A |
| Maximum switching frequency | 5,000 /h |
| Mission time | 20 Year(s) |
Ask for the Pricing of Schmersal Position Switch T1R 256-02Z part no: 151136905 at unbeatable prices. Detailed Specifications of T1R 256-02Z, 151136905 feature the housing is made of Plastic, glass-fibre-reinforced, ensuring strength and corrosion resistance. Featuring a Offset roller lever actuating element, this switch guarantees precise mechanical operation with a minimum mechanical life of 20,000,000 Operations operations. The termination is via Screw terminals M20 x 1.5, supporting a maximum cable section 2.5 mm² for secure connections. The sensor measures 31 mm in length, 58 mm in width, and 78.5 mm in height, making it ideal for industrial use. It carries an IP65IP67 protection rating, safeguarding it against dust and water exposure. The switch operates in ambient temperatures ranging from -30 ... +80 °C, ensuring reliability in extreme conditions. It supports a rated insulation voltage (Ui) of 500 V and features Opener (NC) with an Slow action switching principle. Now's the Time to Secure a Quote for your requirement of Position Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
