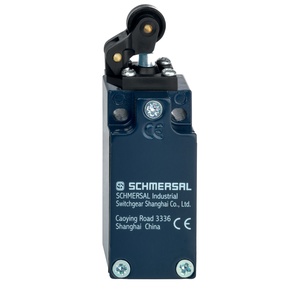

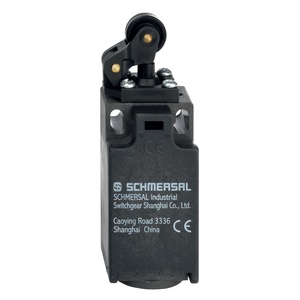

Schmersal T1R 236-02Z-M20-1297 Position Switch
The Schmersal T1R 236-02Z-M20-1297 Position Switch (Item No: ) offers a Plastic, glass-fibre-reinforced housing material, 20,000,000 Operations mechanical life, minimum, IP65IP67 degree of protection, -30 ... +80 °C ambient temperature. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TL Series.
| Brand | Schmersal |
| Product Type | Position switch |
| Model Number | T1R 236-02Z-M20-1297 |
Schmersal Position Switch – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Plastic, glass-fibre-reinforced |
| Housing coating material | - |
| Gross weight | 55 g |
| Number of normally closed (NC) | - |
| open (NO) | - |
| Actuating element | Offset roller lever |
| Roller material | - |
| Mechanical life, minimum | 20,000,000 Operations |
| Actuating angle, from left of switch axis | - |
| Actuating angle, from right of switch axis | - |
| Contact opening | - |
| Actuating speed, minimum | 160 mm/min |
| Actuating speed, maximum | 1 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 0.75 mm² |
| Cable section, maximum | 2.5 mm² |
| Wire cross-section | - |
| Length of sensor | 30 mm |
| Width of sensor | 30 mm |
| Height of sensor | 89.5 mm |
| Width of Castor | - |
| Diameter of Castor | - |
| Degree of protection | IP65IP67 |
| Ambient temperature | -30 ... +80 °C |
| Rated insulation voltage Ui | 500 V |
| Thermal test current | 10 A |
| Switching element | Opener (NC) |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |
| Required rated short-circuit current | 1,000 A |
| Maximum switching frequency | 5,000 /h |
| Mission time | 20 Year(s) |
IndMALL Automation Dealing offers Schmersal Position Switch T1R 236-02Z-M20-1297 part no: 151166199 at unbeatable prices. The Main Technical Parameters of T1R 236-02Z-M20-1297, 151166199 features the housing is made of Plastic, glass-fibre-reinforced, ensuring strength and corrosion resistance. Featuring a Offset roller lever actuating element, this switch guarantees precise mechanical operation with a minimum mechanical life of 20,000,000 Operations operations. The termination is via Screw terminals M20 x 1.5, supporting a maximum cable section 2.5 mm² for secure connections. The sensor measures 30 mm in length, 30 mm in width, and 89.5 mm in height, making it ideal for industrial use. It carries an IP65IP67 protection rating, safeguarding it against dust and water exposure. The switch operates in ambient temperatures ranging from -30 ... +80 °C, ensuring reliability in extreme conditions. It supports a rated insulation voltage (Ui) of 500 V and features Opener (NC) with an Slow action switching principle. Take the First Step with a Quote for your requirement of Position Switch. Choose us for unparalleled pricing and support over other Dealers & Distributors.
