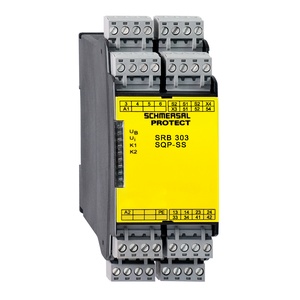

Schmersal SRB303SQP-SS-230V Safety-monitoring Modules
The Schmersal SRB303SQP-SS-230V Safety-monitoring Modules (Item No: 103008088) offers a rigid or flexibleScrew connection, plug-in termination, 2.5 mm² cable section, maximum, IP40 degree of protection, 230 VAC rated operating voltage. Manufactured by Schmersal under the Schmersal Safety-monitoring Modules. category, this model belongs to the Schmersal SR Series.
| Brand | Schmersal |
| Product Type | Safety Monitoring Module |
| Model Number | SRB303SQP-SS-230V |
Schmersal SRB303SQP-SS-230V Safety-monitoring Modules – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Glass-fibre reinforced thermoplastic, ventilated |
| Gross weight | 480 g |
| Diagnostic Coverage (DC) Level, Stop 0 | ≥ 99 % |
| PFH value, Stop 0 | 2.00 x 10⁻⁸ /h |
| Safety Integrity Level (SIL), Stop 0, suitable for applications in | 3 |
| Mounting | Snaps onto standard DIN rail to EN 60715 |
| Terminal designations | EN 60947-1 |
| Termination | rigid or flexibleScrew connection, plug-in |
| Cable section, minimum | 0.25 mm² |
| Cable section, maximum | 2.5 mm² |
| Tightening torque of Clips | 0.5 Nm |
| Width | 45 mm |
| Height | 120 mm |
| Depth | 121 mm |
| Degree of protection of the enclosure | IP40 |
| Degree of protection of the mounting space | IP54 |
| Degree of protection of clips or terminals | IP20 |
| Ambient temperature | -25 ... +60 °C |
| Storage and transport temperature | -40 ... +85 °C |
| Resistance to vibrations | 10 ... 55 Hz, Amplitude 0.35 mm |
| Restistance to shock | 10 g / 11 ms |
| Rated impulse withstand voltage Uimp | 4 kV |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Frequency range | 50 Hz60 Hz |
| Operating voltage | 230 VAC -15 % / +6 % |
| Ripple voltage | - |
| Rated operating voltage | 230 VAC |
| Rated AC voltage for controls, 50 Hz, minimum | 195 VAC |
| Rated control voltage at AC 50 Hz, maximum | 244 VAC |
| Rated AC voltage for controls, 60 Hz, minimum | 195 VAC |
| Rated control voltage at AC 60 Hz, maximum | 244 VAC |
| Rated AC voltage for controls at DC minimum | - |
| Rated control voltage at DC, maximum | - |
| Electrical power consumption | 6 VA |
| Contact resistance, maximum | 0.1 Ω |
| Drop-out delay in case of power failure, typically | 50 ms |
| Drop-out delay in case of emergency, typically | 20 ms |
| Pull-in delay at automatic start, maximum, typically | 80 ms |
| Pull-in delay at RESET, typically | 15 ms |
| Material of the contacts, electrical | AgSn0. self-cleaning, positive drive |
| Voltage, Utilisation category AC-15 | 230 VAC |
| Current, Utilisation category AC-15 | 6 A |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category DC-13 | 6 A |
| Switching capacity, minimum | 10 mA |
| Switching capacity, maximum | 6 A |
| Switching capacity, maximum | 2 A |
| EMC rating | EMC-Directive |
Send Your Inquiry for Schmersal Safety-monitoring Modules SRB303SQP-SS-230V Item No: 103008088 with cost-effective solutions. Essential Technical Specs of SRB303SQP-SS-230V, 103008088 are dedicated safety contacts and are designed for quick installation by Snaps onto standard DIN rail to EN 60715. Termination is achieved via rigid or flexibleScrew connection, plug-in cables, supporting a maximum cable section of 2.5 mm². The recommended tightening torque for the terminal clips is 0.5 Nm, ensuring secure electrical connections. Compact in size, the module measures 45 mm in width, 120 mm in height, and 121 mm in depth, allowing space-efficient integration. The enclosure provides IP40 protection, suitable for protected control cabinet environments. It operates at 230 VAC with a typical electrical power consumption of 6 VA. The maximum contact resistance is 0.1 Ω. The electrical contacts are made of AgSn0. self-cleaning, positive drive properties. Capture the Best Deal with a Quote for your requirement of Safety-monitoring Modules SRB303SQP-SS-230V. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
