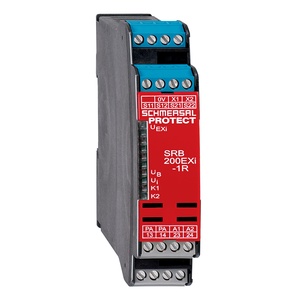

Schmersal SRB200EXi-1R Safety-monitoring Modules
The Schmersal SRB200EXi-1R Safety-monitoring Modules (Item No: 103037575) offers a 22.5 mm width, 2.5 mm² cable section, maximum, IP40 degree of protection, 24 VDC rated operating voltage. Manufactured by Schmersal under the Schmersal Safety-monitoring Modules. category, this model belongs to the Schmersal SR Series.
| Brand | Schmersal |
| Product Type | Safety Monitoring Module |
| Model Number | SRB200EXi-1R |
Schmersal SRB200EXi-1R Safety-monitoring Modules – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Glass-fibre reinforced thermoplastic, ventilated |
| Gross weight | 264 g |
| Number of normally closed (NC) | 2 |
| Number of safety contacts | 2 |
| Diagnostic Coverage (DC) Level, Stop 0 | ≥ 99 % |
| PFH value, Stop 0 | 2.00 x 10⁻⁸ /h |
| Safety Integrity Level (SIL), Stop 0, suitable for applications in | 3 |
| Mounting | Snaps onto standard DIN rail to EN 60715 |
| Terminal designations | IEC/EN 60947-1 |
| Cable section, minimum | 0.25 mm² |
| Cable section, maximum | 2.5 mm² |
| Tightening torque of Clips | 0.6 Nm |
| Width | 22.5 mm |
| Height | 100 mm |
| Depth | 121 mm |
| Degree of protection of the enclosure | IP40 |
| Degree of protection of the mounting space | IP54 |
| Degree of protection of clips or terminals | IP20 |
| Ambient temperature | -25 ... +60 °C |
| Storage and transport temperature | -40 ... +85 °C |
| Resistance to vibrations | 10 ... 55 Hz, Amplitude 0.35 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated impulse withstand voltage Uimp | 4 kV |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Frequency range | - |
| Operating voltage | 24 VDC -10 % / +20 % |
| Ripple voltage | 10 % |
| Rated operating voltage | 24 VDC |
| Rated AC voltage for controls at DC minimum | 20.4 VDC |
| Rated control voltage at DC, maximum | 28.8 VDC |
| Electrical power consumption | 3 W |
| Contact resistance, maximum | 0.1 Ω |
| Drop-out delay in case of power failure, typically | 20 ms |
| Drop-out delay in case of emergency, typically | - |
| Pull-in delay at automatic start, maximum, typically | 300 ms |
| Pull-in delay at RESET, typically | 20 ms |
| Material of the contacts, electrical | AgSn0. self-cleaning, positive drive |
| Conduction resistance, maximum | 30 Ω |
| EMC rating | EMC-Directive |
Send Your Inquiry for Schmersal Safety-monitoring Modules SRB200EXi-1R Item No: 103037575 with cost-effective solutions. Essential Technical Specs of SRB200EXi-1R, 103037575 are 2 dedicated safety contacts and are designed for quick installation by Snaps onto standard DIN rail to EN 60715. Termination is achieved via cables, supporting a maximum cable section of 2.5 mm². The recommended tightening torque for the terminal clips is 0.6 Nm, ensuring secure electrical connections. Compact in size, the module measures 22.5 mm in width, 100 mm in height, and 121 mm in depth, allowing space-efficient integration. The enclosure provides IP40 protection, suitable for protected control cabinet environments. It operates at 24 VDC with a typical electrical power consumption of 3 W. The maximum contact resistance is 0.1 Ω. The electrical contacts are made of AgSn0. self-cleaning, positive drive properties. Capture the Best Deal with a Quote for your requirement of Safety-monitoring Modules SRB200EXi-1R. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
