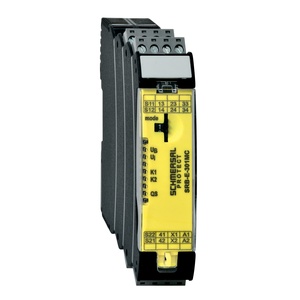

Schmersal SRB-E-301MC20 Monitoring Two-hand Control Panels
The Schmersal SRB-E-301MC20 Monitoring Two-hand Control Panels (Item No: 103026799) offers a 10,000,000 Operations mechanical life, minimum, 0.25 mmΒ² cable section, minimum, IP40 degree of protection, 24 VDC rated operating voltage. Manufactured by Schmersal under the Schmersal Monitoring Two-hand Control Panels. category, this model belongs to the Schmersal SRB Series.
| Brand | Schmersal |
| Product Type | Monitoring Two-hand Control Panels |
| Model Number | SRB-E-301MC20 |
Schmersal SRB-E-301MC20 Monitoring Two-hand Control Panels β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Glass-fibre reinforced thermoplastic, ventilated |
| Gross weight | 175 g |
| Number of auxiliary contacts | 1 |
| Number of LEDs | 5 |
| Number of normally closed (NC) | 2 |
| Number of Safety contacts, STOP 0 | 3 |
| Performance Level, up to | e |
| Diagnostic Coverage (DC) Level | > 99 % |
| Relay outputs - PFH value | 6.00 x 10β»βΉ /h |
| Relay outputs - PFD value | 4.00 x 10β»β΅ |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Mission time | 20 Year(s) |
| Common Cause Failure (CCF), minimum | 65 |
| Category | - |
| PFH value | - |
| PFD value | - |
| Safety Integrity Level (SIL), suitable for applications in | - |
| Fail-safe digital outputs - Mission time | - |
| Mechanical life, minimum | 10,000,000 Operations |
| Mounting | Snaps onto standard DIN rails to IEC 60715 |
| Terminal designations | IEC 60947-1 |
| Termination | rigid or flexibleScrew connection, plug-in |
| Cable section, minimum | 0.25 mmΒ² |
| Cable section, maximum | 2.5 mmΒ² |
| Width | 22.5 mm |
| Height | 98 mm |
| Depth | 115 mm |
| Degree of protection of the enclosure | IP40 |
| Degree of protection of the mounting space | IP54 |
| Degree of protection of clips or terminals | IP20 |
| Ambient temperature | -25 ... +60 Β°C |
| Storage and transport temperature | -40 ... +85 Β°C |
| Resistance to vibrations | 10 ... 55 Hz, Amplitude 0.35 mm |
| Restistance to shock | 30 g / 11 ms |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Operating voltage | 24 VAC -15 % / +10 %24 VDC -15 % / +20 % |
| Ripple voltage | 10 % |
| Rated operating voltage | 24 VDC |
| Rated AC voltage for controls at DC minimum | 20.4 VDC |
| Rated control voltage at DC, maximum | 28.8 VDC |
| Electrical power consumption | 5 VA |
| Contact resistance, maximum | 0.1 Ξ© |
| Note (Contact resistance) | in new state |
| Electrical data - Drop-out delay in case of power failure, typically | 50 ms |
| Drop-out delay in case of emergency, typically | 20 ms |
| Pull-in delay at automatic start, maximum, typically | 100 ms |
| Pull-in delay at RESET, typically | 20 ms |
| Switching frequency, maximum | 0.3 Hz |
| Material of the contacts, electrical | Ag-Ni, self-cleaning, positive drive |
| Voltage, Utilisation category AC-15 | 230 VAC |
| Current, Utilisation category AC-15 | 4 A |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category DC-13 | 4 A |
| Switching capacity, minimum | 10 mA |
| Switching capacity, maximums | 6 A |
| Conduction resistance, maximum | 40 Ξ© |
| Switching capacity, maximum | 1 A |
| EMC rating | EMC-Directive |
