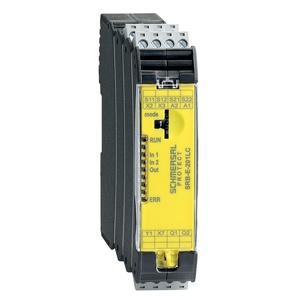

Schmersal SRB-E-201LC Monitoring Two-hand Control Panels
The Schmersal SRB-E-201LC Monitoring Two-hand Control Panels (Item No: 103009970) offers a 2.66 x 10β»βΉ /h PFH value, 0.25 mmΒ² cable section, minimum, IP40 degree of protection, 24 VDC rated operating voltage. Manufactured by Schmersal under the Schmersal Monitoring Two-hand Control Panels. category, this model belongs to the Schmersal SRB Series.
| Brand | Schmersal |
| Product Type | Monitoring Two-hand Control Panels |
| Model Number | SRB-E-201LC |
Schmersal SRB-E-201LC Monitoring Two-hand Control Panels β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Glass-fibre reinforced thermoplastic, ventilated |
| Gross weight | 130 g |
| Number of LEDs | 5 |
| Number of normally closed (NC) | 2 |
| Number of normally open (NO) | 1 |
| Number of safety digital outputs, Stop 0 | 2 |
| Category | 4 |
| PFH value | 2.66 x 10β»βΉ /h |
| PFD value | 2.42 x 10β»β΅ |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Fail-safe digital outputs - Mission time | 20 Year(s) |
| Mounting | Snaps onto standard DIN rail to EN 60715 |
| Terminal designations | IEC/EN 60947-1 |
| Termination | rigid or flexibleScrew connection, plug-in |
| Cable section, minimum | 0.25 mmΒ² |
| Cable section, maximum | 2.5 mmΒ² |
| Width | 22.5 mm |
| Height | 98 mm |
| Depth | 115 mm |
| Degree of protection of the enclosure | IP40 |
| Degree of protection of the mounting space | IP54 |
| Degree of protection of clips or terminals | IP20 |
| Ambient temperature | -25 ... +60 Β°C |
| Storage and transport temperature | -40 ... +85 Β°C |
| Resistance to vibrations | 10 ... 55 Hz, Amplitude 0.35 mm |
| Restistance to shock | 30 g / 11 ms |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Operating voltage | 24 VDC -20 % / +20 % |
| Ripple voltage | 10 % |
| Rated operating voltage | 24 VDC |
| Operating current | 100 mA |
| Rated AC voltage for controls at DC minimum | 19.2 VDC |
| Rated control voltage at DC, maximum | 28.8 VDC |
| Electrical power consumption | 2.4 W |
| Electrical data - Drop-out delay in case of power failure, typically | 10 ms |
| Drop-out delay in case of emergency, typically | 10 ms |
| Pull-in delay at automatic start, maximum, typically | 150 ms |
| Pull-in delay at RESET, typically | 150 ms |
| Switching frequency, maximum | 1 Hz |
| Voltage drop Ud, maximum | 0.5 V |
| Leakage current Ir, maximum | 1 mA |
| Current, Utilisation category DC-12 | 2 A |
| Conduction resistance, maximum | 40 Ξ© |
| Voltage, Utilisation category DC-12 | 24 VDC |
| EMC rating | EMC-Directive |
Obtain a Quote for Schmersal Monitoring Two-hand Control Panels SRB-E-201LC Item No: 103009970 at economical prices. Specifications Overview for SRB-E-201LC, 103009970 reveals rigid or flexibleScrew connection, plug-in cables. It supports cable sections from 0.25 mmΒ² to 2.5 mmΒ². Compact in design, the unit measures 22.5 mm in width, 98 mm in height, and 115 mm in depth, making it easy to integrate into control cabinets. The enclosure offers IP40 protection, with IP54 for the mounting space and IP20 for clips or terminals. Designed for reliability, it operates within ambient temperatures from -25 ... +60 Β°C and can be stored or transported between -40 ... +85 Β°C. It withstands vibration levels of 10 ... 55 Hz, Amplitude 0.35 mm. Operating at 24 VDC -20 % / +20 % tolerance, it has a rated voltage range from 19.2 VDC to 28.8 VDC and a power consumption of 2.4 W. Take the First Step with a Quote for your requirement of Monitoring Two-hand Control Panels SRB-E-201LC. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
