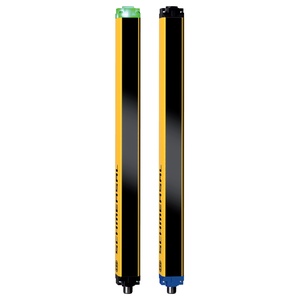

Schmersal SLG440COM-ER-0500-02-H Safety Light Grids
The Schmersal SLG440COM-ER-0500-02-H Safety Light Grids (Item No: 103054126) offers a 2 number of beams, 3 safety integrity level (SIL), suitable for applications in, 500 mm height of the protection field, 60 m range, protection field, maximum. Manufactured by Schmersal under the Schmersal Safety Light Grids. category, this model belongs to the Schmersal SLG Series.
| Brand | Schmersal |
| Product Type | Safety Light Grid |
| Model Number | SLG440COM-ER-0500-02-H |
Schmersal SLG440COM-ER-0500-02-H Safety Light Grids – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Aluminium |
| Reaction time, maximum | 10 ms |
| Restart interlock (manual reset) | Yes |
| Integral system diagnostics, status | Yes |
| Integral system diagnostics | Yes |
| Number of fail-safe digital outputs | 2 |
| Number of beams | 2 |
| Safety classification - Standards | EN ISO 13849-1EN IEC 62061 |
| Category | 4 |
| PFH value | 8.05 x 10⁻⁹ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Mission time | 20 Year(s) |
| Safety type in accordance with IEC 61496-1 | 4 |
| Detection ability for test bodies at v = 1.6 m/s | 500 mm |
| Height of the protection field | 500 mm |
| Range, protection field, minimum | 8 m |
| Range, protection field, maximum | 60 m |
| Wave length of the laserdiode | 880 nm |
| Length of cable | 100 m |
| Termination | Connector |
| Terminal connector, Recipient | Connector plug M12, 5-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
| Length of sensor | 33 mm |
| Width of sensor | 27.8 mm |
| Height of sensor | 571 mm |
| Degree of protection | IP67 |
| Ambient temperature | -10 ... +50 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Protection class | III |
| Switching voltage OSSD, HIGH signal | 24 V |
| Electrical power consumption of the receiver, maximum | 10 W |
| Electrical power consumption of the transmitter, maximum | 5 W |
| Output current, (fail-safe output), maximum | 0.25 A |
| Design of control elements | p-type |
| Scope of delivery | Kit with 2 mounting angles |
| Recommended safety switchgear | SRB-E 301 |
Ask for the Pricing of Schmersal Safety Light Grids SLG440COM-ER-0500-02-H Item No: 103054126 at unbeatable prices. Detailed Specifications of SLG440COM-ER-0500-02-H, 103054126 feature Aluminium housing, the system boasts a PFH value of 8.05 x 10⁻⁹ /h and is rated for Safety Integrity Level (SIL) 3 applications, ensuring maximum reliability in critical operations. Designed for precision, it offers a detection ability of 500 mm for test bodies moving at 1.6 m/s. The unit features standard Connector termination, with an Connector plug M12, 5-pole for the recipient and an Connector plug M12, 4-pole for the transmitter. The compact sensor has a width of just 27.8 mm, allowing for seamless integration in space-constrained areas. Rated IP67, it provides excellent protection against dust and water ingress. The device operates within an ambient temperature range of -10 ... +50 °C and can be stored or transported in temperatures from -25 ... +70 °C. Now's the Time to Secure a Quote for your requirement of Safety Light Grids SLG440COM-ER-0500-02-H. We're committed to offering more favorable pricing and more responsive support than other Traders.
