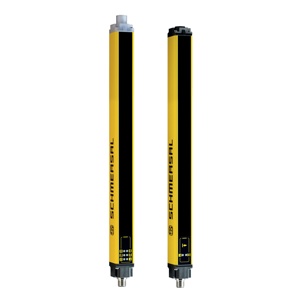

Schmersal SLC445-ER-0570-30-01 Safety Light Curtains
The Schmersal SLC445-ER-0570-30-01 Safety Light Curtains (Item No: 103005408) offers a 28 number of beams, 570 mmheight of the protection field, 10 m range, protection field, maximum, IP67 degree of protection. Manufactured by Schmersal under the Schmersal Safety Light Curtains. category, this model belongs to the Schmersal SLC Series.
| Brand | Schmersal |
| Product Type | Safety Light Curtain |
| Model Number | SLC445-ER-0570-30-01 |
Schmersal SLC445-ER-0570-30-01 Safety Light Curtains β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Aluminium |
| Reaction time, maximum | 10 ms |
| Gross weight | 1,180 g |
| Number of beams | 28 |
| PFH value | 5.14 x 10β»βΉ /h |
| Detection ability for test bodies at v = 1.6 m/s | 30 mm |
| Height of the protection field | 570 mm |
| Range, protection field, minimum | 0.3 m |
| Range, protection field, maximum | 10 m |
| Wave length of the laserdiode | 880 nm |
| Termination | Connector |
| Terminal connector, Recipient | Connector plug M12, 12-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
| Length of the connectable cable, maximum | 100 m |
| Length of sensor | 33 mm |
| Width of sensor | 27.8 mm |
| Height of the Sensor (Receiver) | 661 mm |
| Height of the Sensor (Transmitter) | 651 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +50 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Protection class | III |
| Switching voltage OSSD, HIGH signal | 24 V |
| Electrical power consumption of the receiver, maximum | 10 W |
| Electrical power consumption of the transmitter, maximum | 5 W |
| Output current, (fail-safe output), maximum | 0.25 A |
| Design of control elements | p-type |
Give Us a Call for Schmersal 28 Beams Safety Light Curtain SLC445-ER-0570-30-01 part no: 103005408 at the lowest pricing. In-depth Technical Analysis of SLC445-ER-0570-30-01, 103005408 feature 28 beams, providing a robust protection field height of 570 mm ensuring reliable safety coverage. Termination is achieved via a Connector plug M12, 12-pole available in Connector plug M12, 4-pole configurations, providing flexible connectivity options for diverse applications. The sensors operate at a switching voltage of 24 V with an output current of up to 0.25 A on the fail-safe output, ensuring dependable performance in critical environments. The sensors are rated with a degree of protection of IP67. Elevate Your Project with a Quote for your requirement of Schmersal 28 Beams Safety Light Curtain. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
